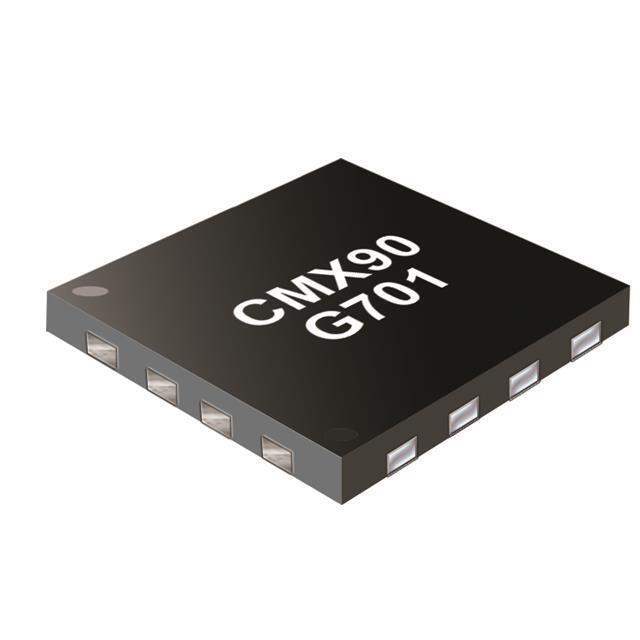

CMX90G701QF-R705 CML Micro
Same model may have multiple batches, images only for reference.

CMX90G701QF-R705

Part No CMX90G701QF-R705
Manufacturer CML Microcircuits
Catalog RF Amplifiers
Description IC AMP 5G FWA 6GHZ-18GHZ 16VQFN
Datasheet
CMX90G701QF-R705 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

The CMX90G301 is a low-power 50 Ω cascadable MMIC gain block suitable for a wide variety of wireless applications operating in the 1.4 – 7.1 GHz frequency range.
The gain block has a positive gain-slope of +1dB across the band, eliminating the need for equalisation and compensates for increasing system losses with frequency.
CMX90G301 is highly integrated for ease of use, minimising component count and board area. RF ports are matched on-chip to 50 Ω with DCblocking capacitors. An active bias circuit allows the device to operate over a wide supply voltage of 2.7V to 5V with typical current of 22 mA.
