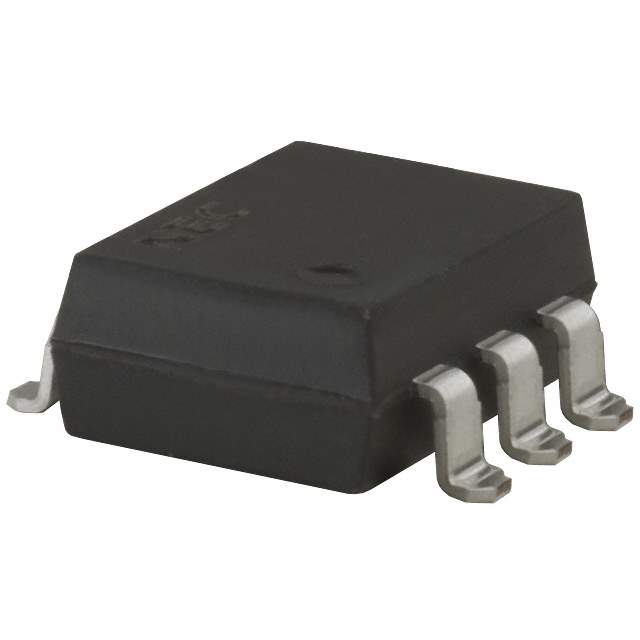

The PS7342L-1A-E3-A is a solid-state relay (SSR) manufactured by CEL (California Eastern Laboratories). It is designed for switching AC loads and providing electrical isolation between the control and load circuits. The 'L' designation in the part number often indicates a lower on-resistance or improved efficiency compared to similar models.

Applications

• Industrial Control Systems: Used in PLCs and other industrial control systems for switching AC loads such as motors, solenoids, and heaters.
• Lighting Control: Applied in lighting control systems for switching and dimming lights, providing energy efficiency and extended bulb life.
• HVAC Systems: Integrated into HVAC systems for switching compressors, fans, and other components, improving system performance and reliability.
• Power Supplies: Used in power supplies for switching AC inputs and outputs, providing isolation and protection.
• Security Systems: Employed in security systems for switching alarm signals and controlling access control devices.

Features

• High Isolation Voltage: Provides a high degree of electrical isolation between the input and output, enhancing safety and preventing ground loops.
• Low On-Resistance: Minimizes voltage drop across the relay when it is conducting, improving efficiency and reducing heat dissipation.
• Zero-Cross Switching: Reduces electromagnetic interference (EMI) by switching the load at or near the zero-crossing point of the AC voltage waveform.
• Compact Size: Allows for high-density mounting on printed circuit boards (PCBs), saving valuable board space.
• Surface Mount Package: Facilitates automated assembly using surface mount technology (SMT).

Benefits

• Enhanced Safety: High isolation voltage protects control circuitry and personnel from hazardous voltages.
• Improved Efficiency: Low on-resistance reduces power dissipation and improves system efficiency.
• Reduced EMI: Zero-cross switching minimizes electrical noise, improving system performance and reducing interference with other electronic devices.
• Increased Reliability: Solid-state design eliminates mechanical contacts, resulting in a longer lifespan and reduced maintenance compared to electromechanical relays.
• Simplified Design: Compact size simplifies circuit design and reduces board space requirements.

Additional Details

The PS7342L-1A-E3-A is typically available in a surface-mount package. Detailed specifications include input voltage range, output voltage and current ratings, isolation voltage, on-resistance, and operating temperature range. Consult the manufacturer's datasheet for specific performance characteristics and application guidelines. The 'E3' and 'A' suffixes may indicate specific environmental compliance, lot codes or packaging options. The internal LED indicates relay status.
