Same model may have multiple batches, images only for reference.

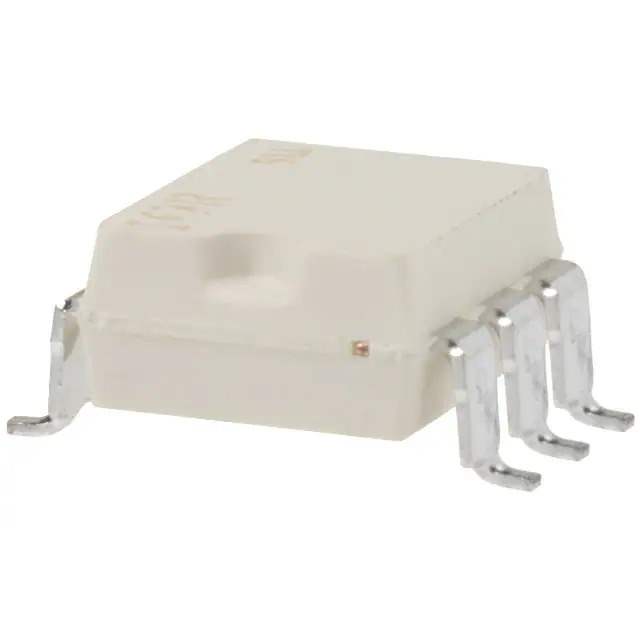

PVU414S Real Image
Same model may have multiple batches, images only for reference.

PVU414S

Part No PVU414S
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 140MA 0-400V / Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
Datasheet
PVU414S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVU, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 400 V
Load Current 140 mA
On-State Resistance (Max) 27 Ohms
Termination Style Gull Wing
Package / Case 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-SMT
Standard Package 50 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 890490-PVU414S
Ultra Librarian 3D Model Ultra Librarian PVU414S CAD Model

Description

The PVU414S is a solid-state relay from the PVU series by Infineon Technologies. It is designed for applications that require reliable switching of AC or DC loads.

  • Series: PVU
  • Circuit Configuration: SPST-NO (1 Form A)
  • On-State Resistance: 27 Ohms
  • Load Current: 140 mA
  • Voltage Range: 0V to 400V
  • Package: Surface Mount, 6-SMD
  • Voltage Input: 1.2VDC
  • Termination Style: Gull Wing
  • Temperature Range: -40°C to 85°C
