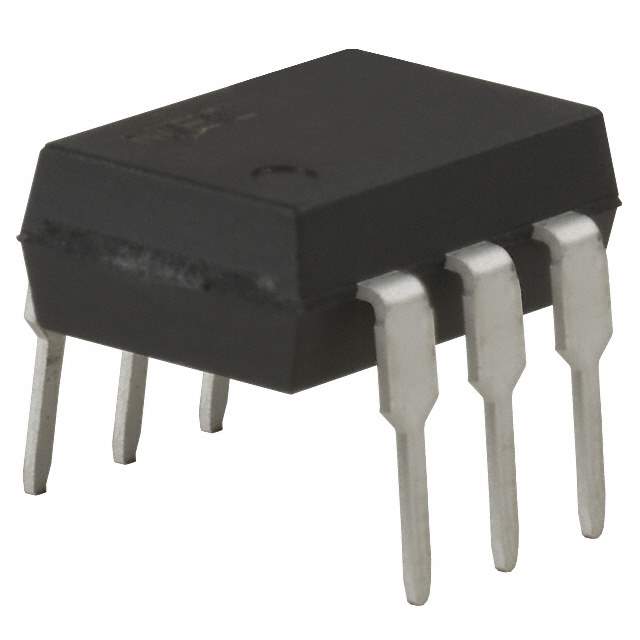

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer CEL
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 2.5 Ohm
Load Current 350mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 100 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 6-DIP
Relay Type Relay
Win Source Part Number 026897-PS7113-1A-A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PS7113-1A-A CAD Model

Description

The CEL PS7113-1A-A is a SPST-NO (1 Form A) relay designed for industrial applications.

  • Voltage Input: 1.2VDC
  • Output Type: AC, DC
  • Mounting: through-hole mounted
  • Termination Style: PC pin
  • Load Current: 350mA
  • Voltage Load: 0 to 100 V
  • Max On Resistance: 2.5 Ohm
  • Status: obsolete (EOL)
  • Popularity: medium
  • Supply and Demand Status: limited
