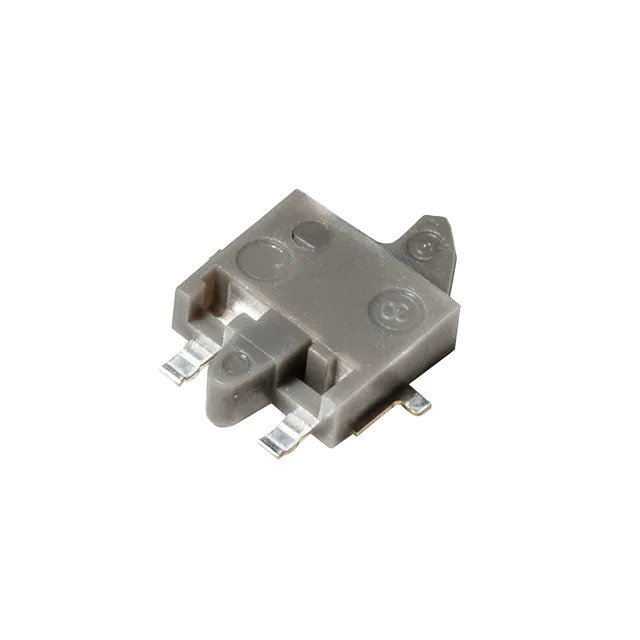

HDP001L

Part No HDP001L
Manufacturer C&K Components
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NO 1MA 5V / Switch SPST-NO Surface Mount, Right Angle
Datasheet
HDP001L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr C&K
Series HDP
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 1mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Type Surface Mount, Right Angle
Termination Style Gull Wing
Ingress Protection -
Features Board Guide
Operating Force -
Release Force -
Operating Position 0.117" (2.96mm)
Pretravel 0.006" (0.15mm)
Differential Travel -
Overtravel -
Temperature Range - Operating -20°C ~ 70°C
Electrical Life 100,000 Cycles
Mechanical Life 100,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1376149-HDP001L
Ultra Librarian 3D Model Ultra Librarian HDP001L CAD Model

Description

The HDP001L is a limit switch manufactured by C&K.

  • Mounting Type: Surface Mount, Right Angle
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Angled Toggle
  • Voltage Rating - DC: 5V
  • Current Rating - DC: 1mA
  • Mechanical Life: 100,000 Cycles
  • Electrical Life: 100,000 Cycles
  • Operating Position: 0.117" (2.96mm)
  • Pretravel: 0.006" (0.15mm)
