Same model may have multiple batches, images only for reference.

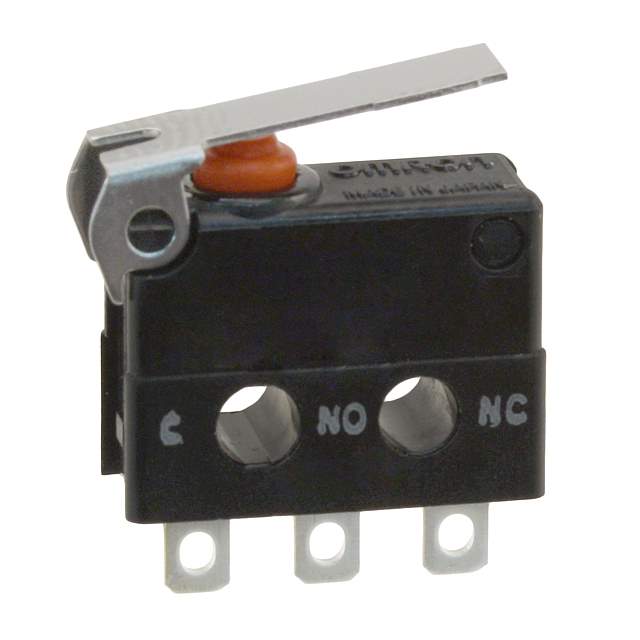

D2JW-01K1A1 Real Image
Same model may have multiple batches, images only for reference.

D2JW-01K1A1

Part No D2JW-01K1A1
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 30V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2JW
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 117gf
Release Force 23gf
Operating Position 0.330" (8.4mm)
Pretravel 0.214" (5.4mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.026" (0.7mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2JW
Standard Package 750
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1345632-D2JW-01K1A1
Ultra Librarian 3D Model Ultra Librarian D2JW-01K1A1 CAD Model

Description

The Omron Electronics Inc-EMC Div D2JW-01K1A1 is a limit switch used in various applications.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Mechanical Life: 1,000,000 Cycles
  • Operating Temperature: -40°C to 85°C
