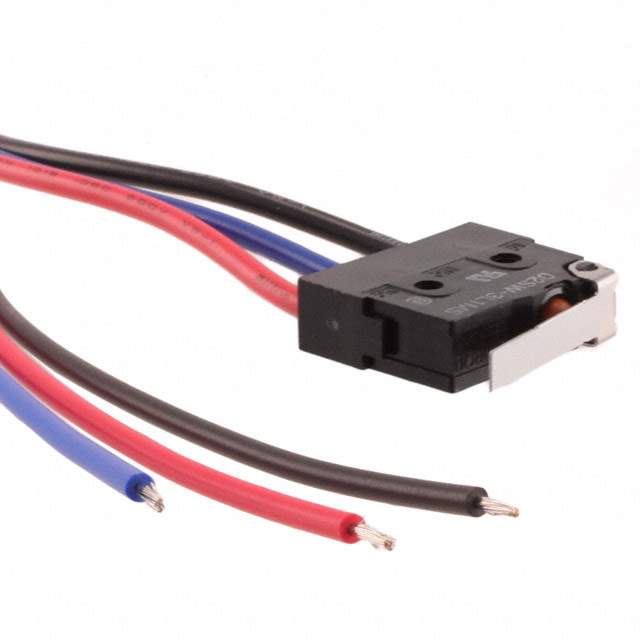

D2SW-3L1MS Real Image
Same model may have multiple batches, images only for reference.

D2SW-3L1MS

Part No D2SW-3L1MS
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2SW
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 60gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 5,000,000 Cycles
Base Product Number D2S
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Names SW295,2266-D2SW-3L1MS,D2SW3L1MS
Standard Package 200
Win Source Part Number 1178030-D2SW-3L1MS
Ultra Librarian 3D Model Ultra Librarian D2SW-3L1MS CAD Model

Description

The D2SW-3L1MS by Omron Electronics Inc-EMC Div is a limit switch with a circuit of SPDT and a switch function of On-Mom.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 30V
  • Standard Package: 200
  • Mounting Type: Chassis Mount
  • Locking Feature: Rotary Lock, Backlock
  • Termination Style: Wire Leads
  • Ingress Protection: IP67 (Dust Tight, Waterproof)
  • Operating Force: 60gf
  • Mechanical Life: 5,000,000 cycles
  • Operating Temperature Range: -40℃ to 85℃
