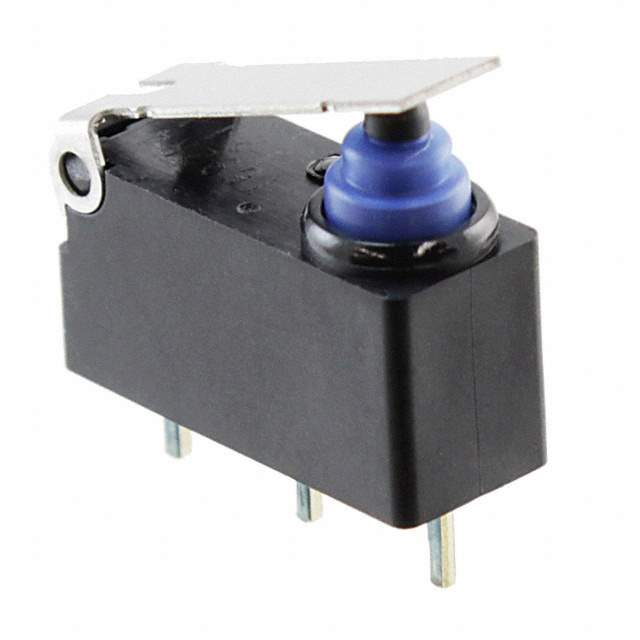

D2HW-A211D Real Image
Same model may have multiple batches, images only for reference.

D2HW-A211D

Part No D2HW-A211D
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2HW
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 12 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 76gf
Release Force 7.138gf
Differential Travel 0.020" (0.5mm)
Overtravel 0.062" (1.6mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.453" (11.5mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2HW
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2HWA211DBYOMR,D2HW-A211D BY OMR,D2HWA211D
Standard Package 500
Win Source Part Number 1177969-D2HW-A211D
Ultra Librarian 3D Model Ultra Librarian D2HW-A211D CAD Model

Description

The D2HW-A211D is a SPDT On-Mom Lever/Straight Limit Switch from Omron Electronics.

  • Voltage Rating (AC): 125V AC
  • Voltage Rating (DC): 12V DC
  • Current Rating (AC): 100mA (AC)
  • Current Rating (DC): 2A (DC)
  • Operating Force: 76gf
  • Mechanical Life: 1,000,000 cycles
  • Ingress Protection: IP67
  • Differential Travel: 0.020 inches (0.5mm)
  • Overtravel: 0.062 inches (1.6mm)
  • Release Force: 7.138gf
  • Operating Position: 0.453 inches (11.5mm)
  • Mounting: Through a hole
  • Temperature Range: -40°C to 85°C
