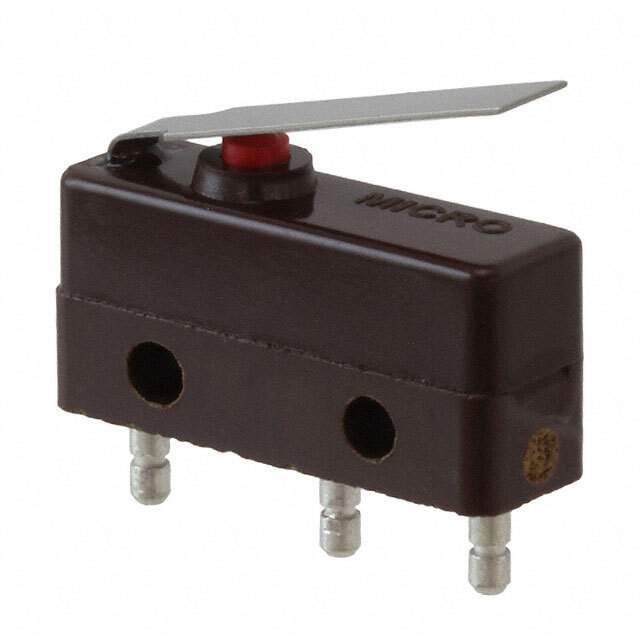

111SM1-H58 Real Image
Same model may have multiple batches, images only for reference.

111SM1-H58

Part No 111SM1-H58
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 250V / Switch SPDT Chassis Mount
Datasheet
111SM1-H58 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SM
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.058" (Round)
Operating Force 198gf
Release Force 57gf
Operating Position 0.350" (8.9mm)
Pretravel 0.218" (5.5mm)
Differential Travel 0.030" (0.76mm)
Overtravel 0.030" (0.76mm)
Temperature Range - Operating -55°C ~ 125°C
Mechanical Life 10,000,000 Cycles
Base Product Number 111SM
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1350931-111SM1-H58
Ultra Librarian 3D Model Ultra Librarian 111SM1-H58 CAD Model

Description

The Honeywell Sensing and Productivity Solutions 111SM1-H58 is a limit switch that has a circuit of SPDT and a switch function of On-Mom. 111SM1-H58, Honeywell Sensing and Productivity Solutions.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Termination Style: Quick Connect - 0.058" (Round)
  • Mounting Type: Chassis Mount
  • Operating Force: 198gf
  • Release Force: 57gf
  • Differential Travel: 0.030" (0.76mm)
  • Pretravel: 0.218" (5.5mm)
  • Operating Position: 0.350" (8.9mm)
  • Temperature Range: -55°C ~ 125°C
