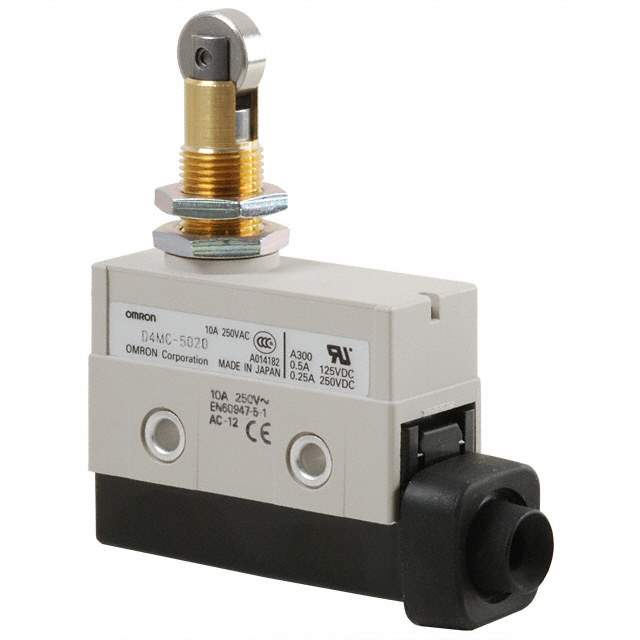

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Automation and Safety
Series D4MC
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC), 6A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Roller Plunger
Mounting Type Panel Mount
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 600gf
Release Force 100gf
Pretravel 0.063" (1.6mm)
Differential Travel 0.008" (0.2mm)
Overtravel 0.197" (5.0mm)
Temperature Range - Operating -10°C ~ 80°C
Operating Position 1.313" (33.4mm)
Electrical Life 500,000 Cycles
Mechanical Life 10,000,000 Cycles
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Other Names D4MC5020,Z2729
Standard Package 1
Win Source Part Number 1173267-D4MC-5020
Ultra Librarian 3D Model Ultra Librarian D4MC-5020 CAD Model

Description

The Omron D4MC-5020 is a limit switch with a Win Source Part Number of 1173267-D4MC-5020.

  • Series: D4MC
  • Termination Style: Screw Terminal
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 30V
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Roller Plunger
  • Operating Force: 600gf
  • Release Force: 100gf
  • Mechanical Life: 10,000,000 Cycles
  • Electrical Life: 500,000 Cycles
  • Pretravel: 0.063" (1.6mm)
  • Differential Travel: 0.008" (0.2mm)
  • Overtravel: 0.197" (5.0mm)
  • Operating Position: 1.313" (33.4mm)
  • Mounting: Panel Mountable
  • Temperature Range: -10°C to 80°C
  • Current Rating (AC): 10A
  • Current Rating (DC): 6A
  • ECCN: EAR99
  • HTSUS: 8536.50.9055
  • Manufacturer: Omron Automation and Safety
