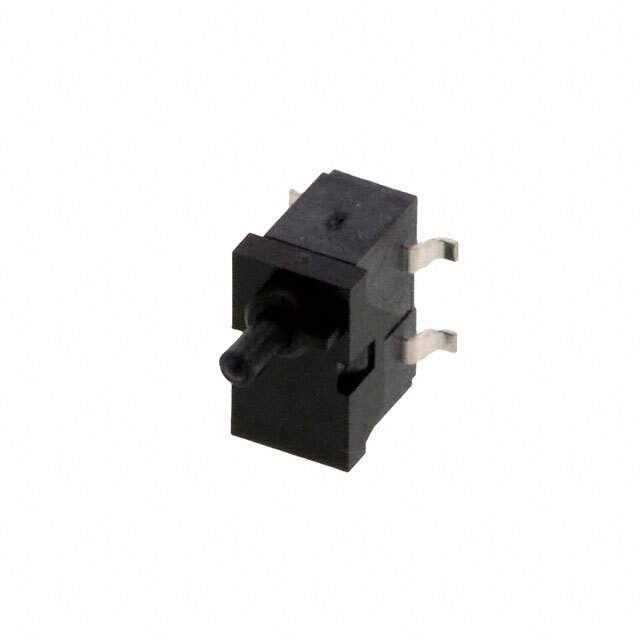

JJLV0UG840NOPPRTB Real Image
Same model may have multiple batches, images only for reference.

JJLV0UG840NOPPRTB

Part No JJLV0UG840NOPPRTB
Manufacturer TE Connectivity
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NO 5MA 5V / Switch SPST-NO Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series JJL
Package Tube
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 5mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting SMD (SMT)
Termination Style Gull Wing
Operating Force 35gf
Pretravel 0.029" (0.75mm)
Temperature Range - Operating -20°C ~ 70°C
Operating Position 0.301" (7.65mm)
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number JJLV0
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Other Names 2331400-1,450-3342
Standard Package 50
Win Source Part Number 1192163-JJLV0UG840NOPPRTB
Ultra Librarian 3D Model Ultra Librarian JJLV0UG840NOPPRTB CAD Model

Description

The JJL series limit switch is available in SMD (SMT) mounting with gull wing termination style.

  • Win Source Part Number: 1192163-JJLV0UG840NOPPRTB
  • Packaging: tube
  • Standard Packages: 50
  • Switch Circuit: SPST-NO
  • Switch Function: off-mom
  • Actuator Type: angled toggle (detector)
  • Electrical Life: 50,000 cycles
  • Operating Force: 35gf
  • Mechanical Life: 50,000 cycles
  • Pretravel: 0.029" (0.75mm)
  • Operating Position: 0.301" (7.65mm)
  • Current Rating: 5mA (DC)
  • Operating Temperature: -20°C ~ 70°C
  • ECCN: EAR99
  • REACH: REACH unaffected
