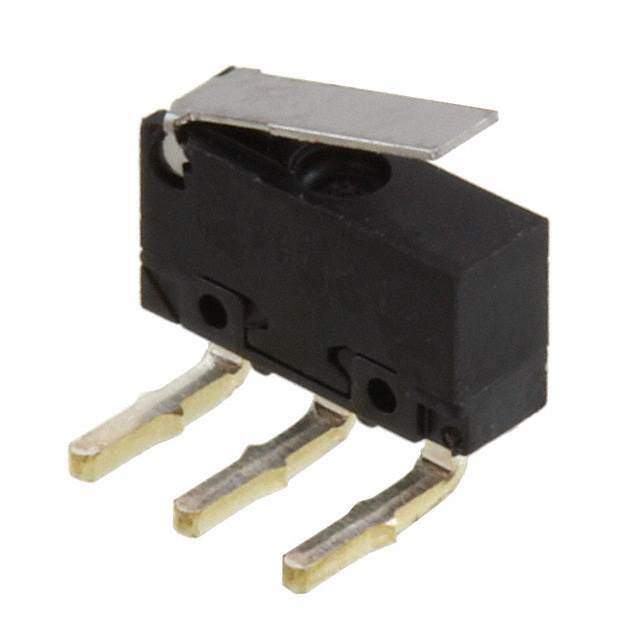

AV4624 Real Image
Same model may have multiple batches, images only for reference.

AV4624

Part No AV4624
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 500MA 30V  /  Switch SPDT Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Panasonic Electric Works
Series AV4
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 500mA (DC)
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features Actuator Mounted Left Side
Operating Force 25gf
Pretravel 0.094" (2.4mm)
Differential Travel 0.027" (0.7mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 80°C
Operating Position 0.228" (5.8mm)
Electrical Life 20,000 Cycles
Mechanical Life 300,000 Cycles
Base Product Number AV462
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names 255-3741,AV4624-ND
Standard Package 500
Win Source Part Number 1164197-AV4624
Ultra Librarian 3D Model Ultra Librarian AV4624 CAD Model

Description

The AV4 series of limit switches from Panasonic Electric Works is an ideal solution for applications that require a SPDT circuit with a PC pin termination style.

  • Circuit: SPDT
  • Termination: PC pin
  • Packaging: bulk
  • Actuator: mounted on the left side
  • Voltage Rating: 30 V DC
  • Electrical Life: 20,000 cycles
  • Operating Force: 25gf
  • Mechanical Life: 300,000 cycles
  • Pretravel: 0.094" (2.4mm)
  • Differential Travel: 0.027" (0.7mm)
  • Overtravel: 0.015" (0.4mm)
  • Temperature Range: -25°C ~ 80°C
  • Mounting: through a hole with a right angle
  • Manufacturer Part Numbers: 255-3741 and AV4624-ND
