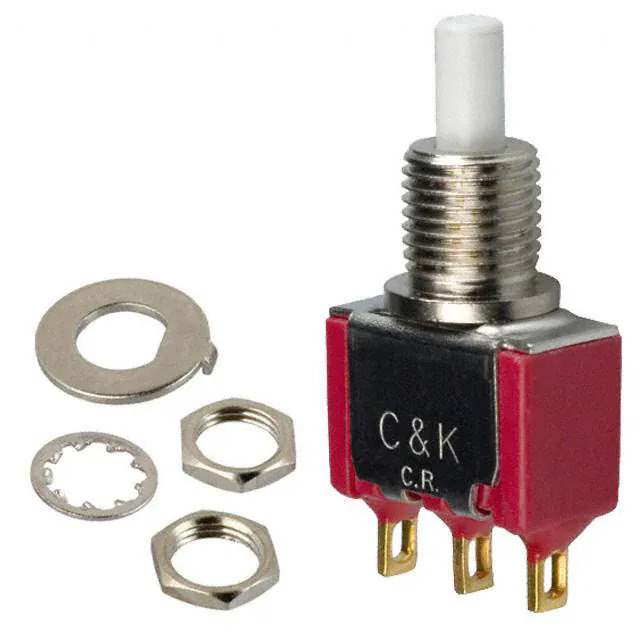

8121SHZGE Real Image
Same model may have multiple batches, images only for reference.

8121SHZGE

Part No 8121SHZGE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 1A 120V
Datasheet
8121SHZGE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K Components
Series 8020
Package Bulk
Product Status Active
Mounting Type Panel Mount, Rear
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap White
Termination Style Solder Lug
Features Tactile Feedback
Panel Cutout Dimensions Circular - 6.35mm Dia
Temperature Range - Operating -30°C ~ 75°C
Electrical Life 60,000 Cycles
Base Product Number 8121SH
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 847671-8121SHZGE
Ultra Librarian 3D Model Ultra Librarian 8121SHZGE CAD Model

Description

The C&K Components 847671-8121SHZGE is a panel mount pushbutton switch from the 8020 series.

  • Series: 8020
  • Mounting Type: Panel Mount
  • Termination Style: Solder Lug
  • Feedback: Tactile
  • Packaging: Bulk
  • Standard Package: 1 Piece
  • Voltage Rating: 120V AC, 28V DC
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round Plunger
  • Electrical Life: 60,000 Cycles
  • Operating Temperature: -30°C to 75°C
