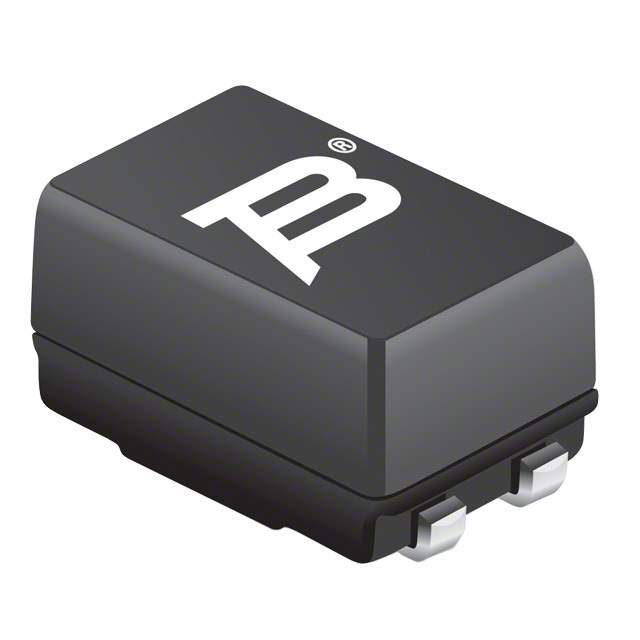

SRF0905-100Y Real Image
Same model may have multiple batches, images only for reference.

SRF0905-100Y

Part No SRF0905-100Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 10UH 1.6A 2LN 200 OHM SMD / Common Mode Chokes Dual 10uH 200Ohm 1kHz 1.6A 0.08Ohm DCR SMD T/R
Datasheet
SRF0905-100Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Bourns Inc.
Series SRF0905
Packaging Reel package
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 200 Ohm @ 20MHz
Inductance @ Frequency 10μH @ 1kHz
Current Rating (Maximum) 1.6A
DC Resistance (DCR) (Maximum) 80 mOhm
Voltage Rating - DC 80V
Operating Temperature Range -40°C ~ 105°C
Mounting SMD
Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Maximum) 0.209" (5.30mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 795393-SRF0905-100Y
Popularity Medium
Supply and Demand Status Limited
Family Name SRF0905
Introduction Date May 20, 2009
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SRF0905-100Y CAD Model

Description

The Bourns Inc. SRF0905-100Y is a signal line filter designed for surface mount applications from Bourns Inc.

  • Package: horizontal, 4 PC pad
  • Packaging: reel
  • Series: SRF0905
  • Family Name: SRF0905
  • Impedance: 200 Ohm @ 20MHz
  • Inductance: 10μH @ 1kHz
  • Operating Temperature: -40°C to 105°C
  • Voltage Rating - DC: 80V
  • ECCN: EAR99
  • REACH: unaffected
  • Height (Maximum): 0.209" (5.30mm)
  • Current Rating (Maximum): 1.6A
