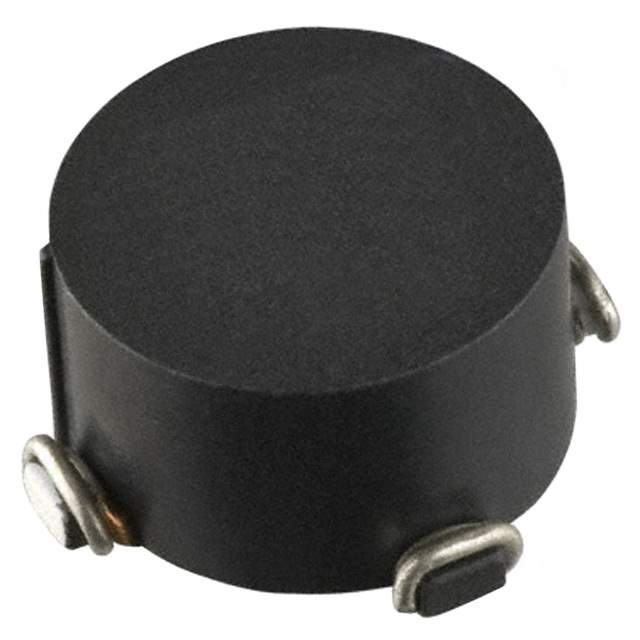

PM3700-30-RC Real Image
Same model may have multiple batches, images only for reference.

PM3700-30-RC

Part No PM3700-30-RC
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 750UH 5.5A 2LN SMD
Datasheet
PM3700-30-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2000157-PM3700-30-RC
Win Source Part Number Cross
Manufacturer Bourns Inc.
Category Filters Common Mode Chokes
Series PM3700
Packaging Tape & Reel (TR)
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case Horizontal, 4 PC Pad
Product Status Active
Ultra Librarian 3D Model Ultra Librarian PM3700-30-RC CAD Model

Description

The Bourns Inc. PM3700 series is a common mode choke filter designed for use in electronic circuits.

  • Mounting Type: Surface Mount
  • Package: Horizontal, 4 PC Pad
  • Packaging: Tape and Reel (TR)
  • Operating Temperature: -55°C to 125°C
  • Product Status: Active
  • Alternative Parts Available: Cross-Reference Alternative Parts
