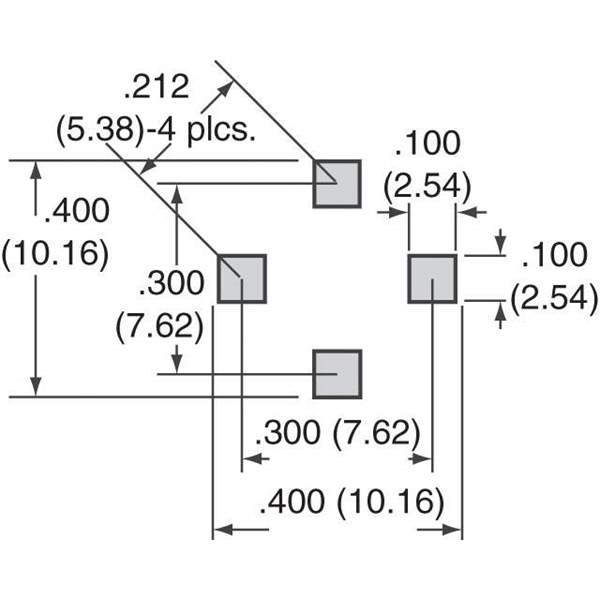

CM6149R-104 Real Image
Same model may have multiple batches, images only for reference.

CM6149R-104

Part No CM6149R-104
Manufacturer API Delevan Inc.
Catalog Common Mode Chokes
Description Surface Mount Low Profile CM Choke
Datasheet
CM6149R-104 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer API Delevan Inc.
Series CM6149R
Packaging Bulk
Number of Lines 2
Inductance @ Frequency 100μH @ 10kHz
Current Rating (Maximum) 1.6A
DC Resistance (DCR) (Maximum) 30 mOhm
Operating Temperature Range -55°C ~ 105°C
Mounting SMD
Size 0.285" L x 0.285" W (7.24mm x 7.24mm)
Height (Maximum) 0.210" (5.33mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 1162171-CM6149R-104
Manufacturer Homepage www.delevan.com
Popularity Medium
Supply and Demand Status Limited
Family Name CM6149R
Introduction Date September 01, 2004
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian CM6149R-104 CAD Model

Description

The API Delevan Inc. CM6149R-104 is a medium popularity electronic component with a limited supply and demand status.

  • GPTDescription: It is a horizontal, 4 PC pad package with 2 lines and a size of 0.285" L x 0.285" W (7.24mm x 7.24mm).
  • GPTDescription: The Win Source part number for this product is 1162171-CM6149R-104.
  • GPTDescription: It can operate in a temperature range of -55°C to 105°C and has a maximum current rating of 1.6A.
  • GPTDescription: Its DC resistance (DCR) is 30 mOhm, and it has an estimated EOL date of 2022.
