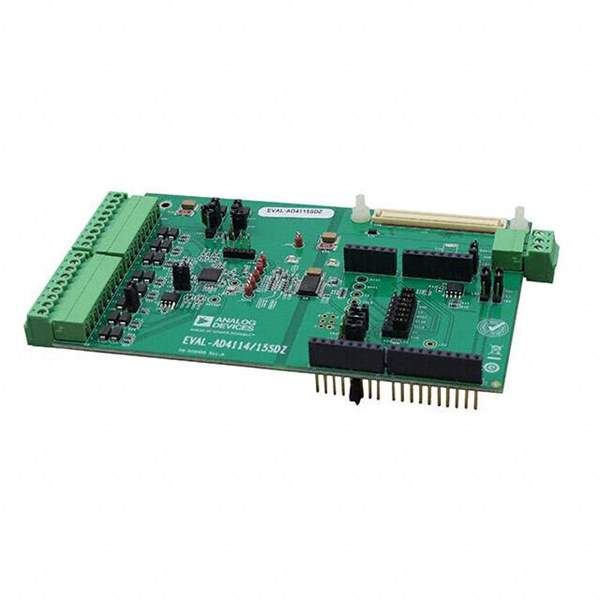

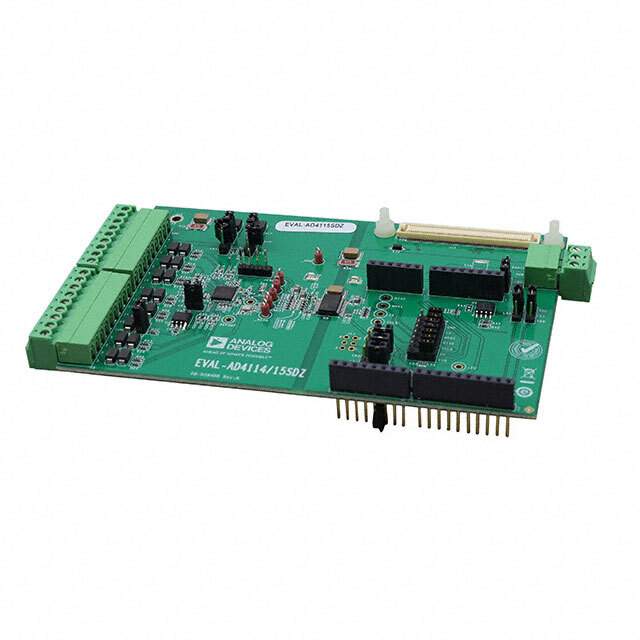

The EVAL-AD4115SDZ is a comprehensive evaluation board designed by Analog Devices Inc. to showcase the capabilities of the AD4115, a low power, low noise, fully integrated analog-to-digital converter (ADC) that operates in multi-channel mode. The AD4115 is an ideal solution for applications requiring a large number of analog inputs, such as process control and industrial automation.

This versatile evaluation board is equipped with the AD4115 ADC, which features a 24-bit data output with a highly flexible input multiplexer (mux). The mux can be configured for either single-ended or differential inputs, accommodating a wide variety of signal sources. The AD4115 also supports a broad range of input voltages, making it suitable for diverse industrial requirements.

The EVAL-AD4115SDZ board interfaces with a computer via the EVAL-SDP-CB1Z System Demonstration Platform (SDP). The SDP board is connected to the evaluation board through a 120-pin connector, which allows for the high-speed data capture and communication necessary for thorough evaluation of the ADC's performance. The accompanying software provides a user-friendly graphical interface for easy data analysis and management.

Key features of the EVAL-AD4115SDZ include:

• Multiple input channels with single-ended or differential inputs
• 24-bit resolution with a variety of output data rates
• On-board reference and reference buffer
• Power supply regulation for the ADC
• Robust filtering options to improve signal quality
• Easy-to-use evaluation software for data capture and analysis

The EVAL-AD4115SDZ is an essential tool for engineers and developers looking to fully explore the features and performance of the AD4115 ADC. Whether for prototyping or for in-depth analysis, this evaluation board simplifies the process of integrating the ADC into a wide array of industrial and process control applications.
