Analog Devices Inc. ADA4431-1YCPZ-R7 Description

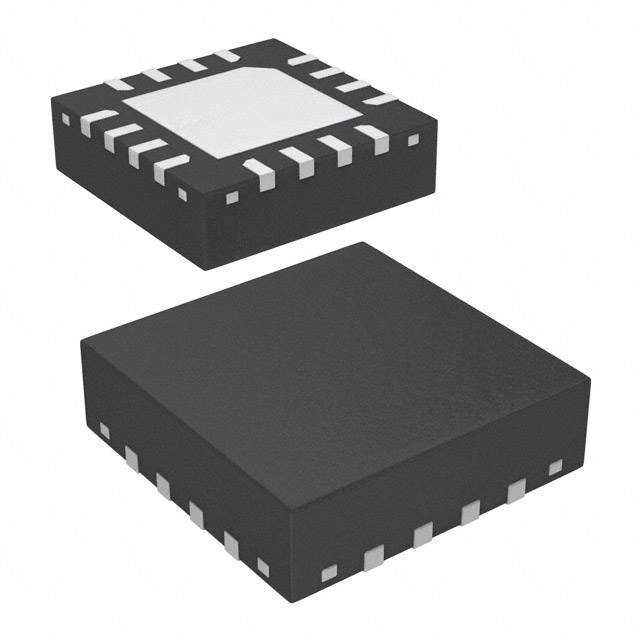

The ADA4431-1YCPZ-R7 from Analog Devices Inc. is a high-performance, integrated video filter and buffer designed for composite video signal applications. This compact and efficient component is an ideal solution for standard-definition video applications that require clean and stable video signals. The ADA4431-1YCPZ-R7 is housed in a 7-lead LFCSP (Lead Frame Chip Scale Package) which enables a small footprint on the PCB while providing excellent thermal performance.

The device features a 6th-order Butterworth filter with a 9 MHz cutoff frequency, which makes it suitable for SDTV (Standard Definition Television) applications. Its filter characteristics are specifically optimized to provide a well-defined passband and a steep attenuation roll-off, ensuring the suppression of unwanted high-frequency noise while maintaining the integrity of the video signal.

With a single-supply voltage ranging from 2.7V to 5V, the ADA4431-1YCPZ-R7 is versatile and can be easily integrated into various system designs. Its low power consumption makes it an excellent choice for portable and battery-powered applications, where energy efficiency is critical. The device also boasts a high drive capability, being able to drive double-terminated 75 Ohm cables directly, which simplifies design and reduces component count.

The ADA4431-1YCPZ-R7 also includes an internal clamp circuit that simplifies the DC restoration in video systems. This feature helps to stabilize the black level of the video signal, ensuring consistent picture quality. Additionally, the device has a shutdown feature that reduces the power consumption when not in use, further extending battery life in portable applications.

Analog Devices Inc. is known for its commitment to high-quality and reliable components, and the ADA4431-1YCPZ-R7 is no exception. It is designed to meet the stringent requirements of video signal processing, providing designers with a robust and high-fidelity solution for their composite video applications.

Overall, the ADA4431-1YCPZ-R7 is an excellent choice for designers looking to implement a cost-effective, high-quality video filter and buffer in their SD video applications. Its combination of performance, power efficiency, and compact design make it a valuable addition to any video signal processing system.
