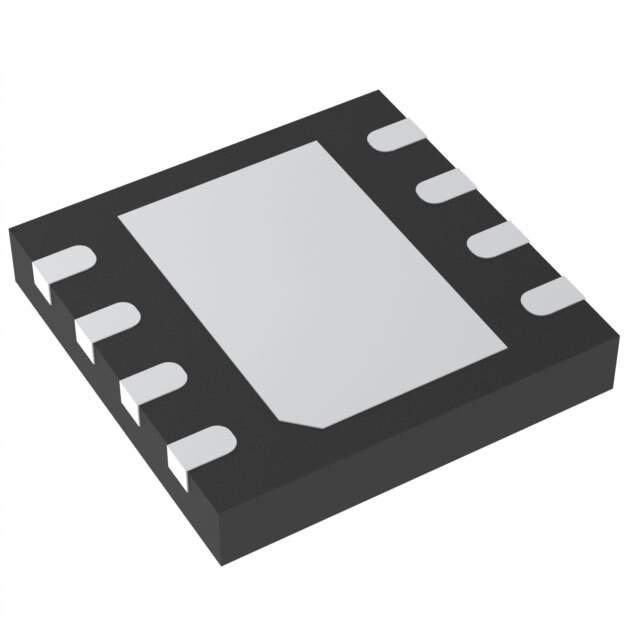

ADA4433-1WBCPZ-R7

Part No ADA4433-1WBCPZ-R7
Manufacturer Analog Devices Inc.
Catalog Linear - Amplifiers - Video Amps and Modules
Description SD Video Filter Amplifiers
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Applications Reconstruction Filter
Output Type Differential
Number of Circuits 1
-3db Bandwidth 9.9MHz
Operating Supply Current 13.2mA
Output Current per Channel 29mA
Dual Supply Voltage (±) 2.7 V ~ 3.6 V
Mounting SMD
Package 8-WFDFN Exposed Pad, CSP
Manufacturer Package 8-LFCSP-WD (3x3)
Win Source Part Number 1139429-ADA4433-1WBCPZ-R7
Manufacturer Homepage www.analog.com
Family Name ADA4433-1
Introduction Date April 13, 2012
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ADA4433-1WBCPZ-R7 CAD Model

Description

Analog Devices Inc. ADA4433-1WBCPZ-R7 Overview

The ADA4433-1WBCPZ-R7 is a high-performance, fully integrated video reconstruction filter from the renowned manufacturer Analog Devices Inc. This advanced component is specifically designed to provide superior video quality in a variety of applications, including standard-definition (SD) video, high-definition (HD) video, and personal video recording systems.

Encased in a compact 16-lead LFCSP (Lead Frame Chip Scale Package) that measures just 3mm x 3mm, the ADA4433-1WBCPZ-R7 is an ideal solution for space-constrained designs. Its small footprint does not compromise its functionality or performance, making it an excellent choice for portable and consumer electronics where size and power efficiency are critical.

Key Features

  • Integrated Filter: The ADA4433-1WBCPZ-R7 includes a high-quality, integrated reconstruction filter that significantly reduces the need for external components, simplifying the design and reducing overall system cost.
  • Low Power Consumption: With a focus on power efficiency, this device operates with a low power consumption, making it suitable for battery-powered applications.
  • High Performance: The device delivers excellent video performance with a high level of integration, ensuring crisp and clear video signals.
  • Easy to Use: The ADA4433-1WBCPZ-R7 is designed for ease of use, with minimal external components required for operation, which helps to speed up the design process and time to market.

Applications

The versatility of the ADA4433-1WBCPZ-R7 makes it an ideal choice for a wide range of video applications. It is particularly well-suited for:

  • Video surveillance systems
  • Set-top boxes
  • Portable media players
  • Video conferencing equipment
  • Automotive rearview cameras

With its combination of high performance, low power consumption, and ease of use, the ADA4433-1WBCPZ-R7 from Analog Devices Inc. is a versatile and reliable choice for designers looking to enhance the video capabilities of their products. Its integration features and compact size make it a standout choice for modern video applications where quality and efficiency are paramount.
