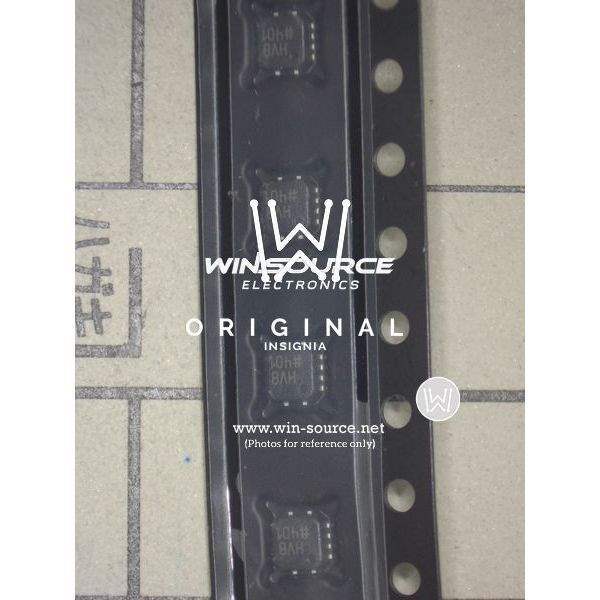

Product Overview: AD8337BCPZ-R2

The AD8337BCPZ-R2 is a highly integrated, low power, single-channel Variable Gain Amplifier (VGA) developed by Analog Devices Inc., a leader in high-performance analog technology. This component is designed to offer precise and linear control over the gain, making it an ideal choice for a wide range of applications such as medical ultrasound, radar systems, and communication infrastructure.

Key Features

• Wide Bandwidth: The AD8337BCPZ-R2 operates over a broad frequency range, ensuring compatibility with various high-speed signal processing tasks.
• Linear-in-dB Gain Control: It features a linear-in-dB scaling with 0.5 dB/step gain control, providing precise gain adjustments.
• Low Noise Figure: With a low noise figure, this VGA minimizes additional signal degradation, crucial for maintaining signal integrity.
• High Integration: The device integrates several functions, reducing the need for external components and simplifying circuit design.
• Single Supply Operation: It operates from a single supply voltage, simplifying power management in system design.

Applications

• Medical Ultrasound Equipment
• Base Station Receivers
• IF Sampling Receivers
• Radar Systems
• General Purpose Automatic Gain Control (AGC) Applications

Product Specifications

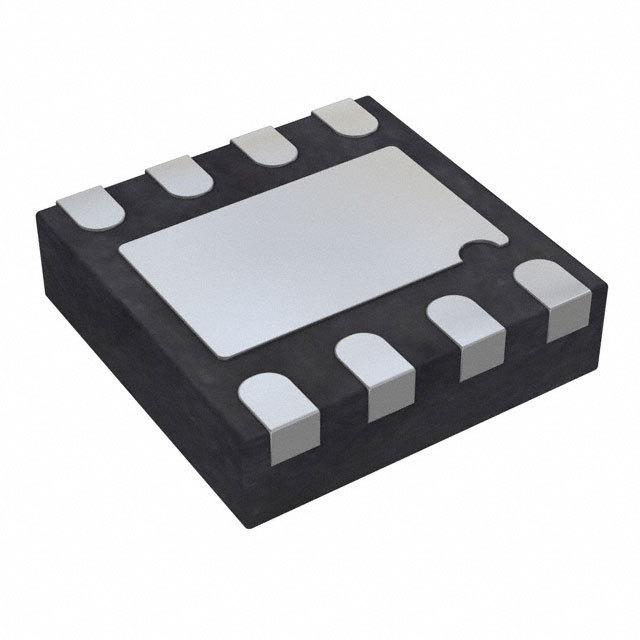

The AD8337BCPZ-R2 is packaged in a compact LFCSP (Lead Frame Chip Scale Package), which is ideal for space-constrained applications. The device's gain range is from -4.5 dB to +43.5 dB, allowing for a wide dynamic range to accommodate varying signal amplitudes. Moreover, it boasts an excellent gain flatness across its frequency range, ensuring consistent performance throughout its operational bandwidth.

Analog Devices Inc. is known for their commitment to high-quality products, and the AD8337BCPZ-R2 is no exception. It is designed to meet the rigorous demands of modern electronic systems, providing reliability and performance that engineers can trust. Whether it's for precise medical imaging or robust communication systems, the AD8337BCPZ-R2 is a versatile solution that offers both performance and ease of integration.
