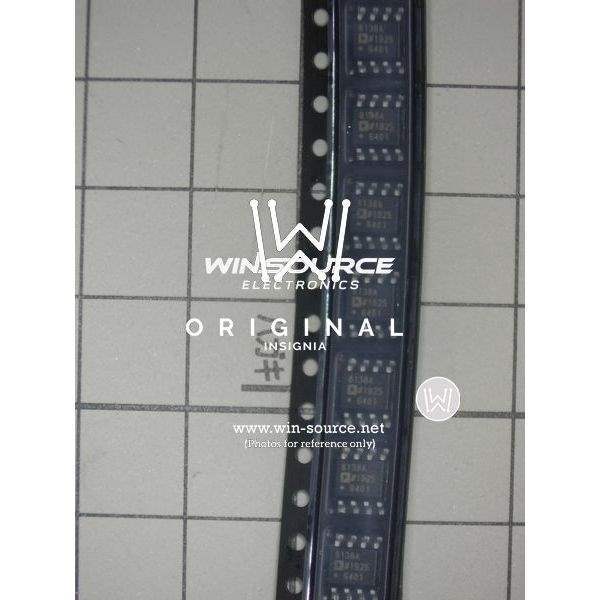

The AD8138ARZ-REEL7 is a high-performance, low-distortion differential amplifier designed by Analog Devices Inc., a leader in high-performance semiconductors for signal processing applications. This component is part of the AD8138 series and comes in a convenient tape and reel packaging, making it ideal for automated assembly processes.

With its low harmonic distortion and high signal-to-noise ratio, the AD8138ARZ-REEL7 is perfect for driving high-performance ADCs in data acquisition systems. The amplifier is also well-suited for differential signal processing applications, such as those found in communication systems, radar, test equipment, and video systems.

Key Features:

• High Performance: Offers excellent dynamic performance with a 3 dB bandwidth of 320 MHz and a slew rate of 1700 V/µs, ensuring high-speed signal processing capabilities.
• Low Distortion: Features a low harmonic distortion (HD2 and HD3) that is critical for maintaining signal fidelity in high-frequency applications.
• Low Noise: The device provides a low noise figure, minimizing the introduction of unwanted noise into signal chains.
• Differential Output: Capable of driving differential inputs of ADCs, providing better common-mode noise rejection and improving overall system performance.
• Single-Supply Operation: Operates on a single 5 V supply, simplifying power supply design and reducing system complexity.
• Robust Packaging: Supplied in an 8-lead SOIC package that ensures reliability and durability for industrial applications.

Applications:

• Data Acquisition Systems
• Communication Infrastructure
• Radar and Navigation Systems
• Professional Video Equipment
• Test and Measurement Instruments

The AD8138ARZ-REEL7 differential amplifier is designed to meet the stringent requirements of high-speed data and video processing applications. Its performance characteristics make it an excellent choice for any design engineer looking to improve signal integrity in their high-speed analog systems.
