AD5933YRSZ - Impedance Converter Network Analyzer

The AD5933YRSZ is a high-precision impedance converter system solution with an integrated frequency generator from the renowned manufacturer, Analog Devices Inc. This compact device is designed to make impedance measurement simple and efficient, offering a complete system on a chip for impedance analysis over a frequency range from 1kHz to 100kHz.

Key Features

• Integrated Frequency Generator: The on-chip programmable frequency generator allows the system to apply a known frequency to an unknown impedance.
• High Accuracy: The AD5933YRSZ provides high accuracy measurements with a 12-bit Impedance Converter ADC and a 1024-point Fast Fourier Transform (FFT).
• Programmable Output Ranges: This device features programmable output ranges and an adjustable excitation voltage to accommodate various types of impedance elements.
• Temperature Sensor: An on-board temperature sensor enables temperature monitoring of the environment or the device under test, which can be critical for temperature-sensitive impedance measurements.
• Simple Interface: The I2C interface allows for easy communication with microcontrollers or processors, simplifying the integration into a system.

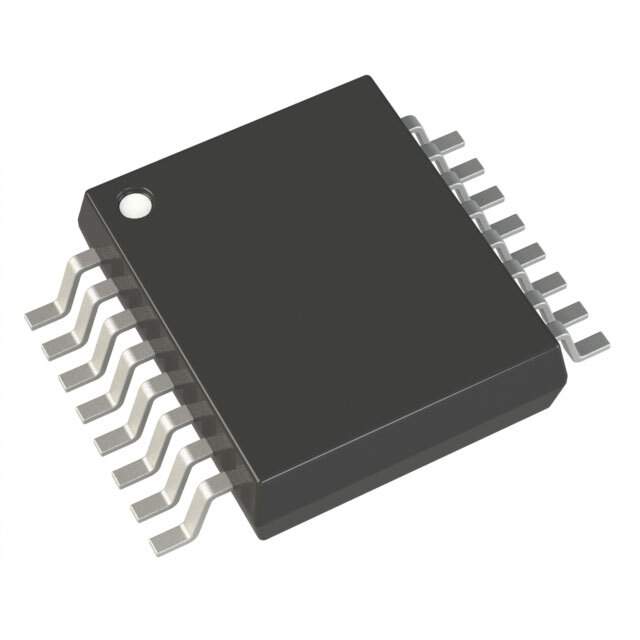

• Compact Package: Housed in a compact SSOP package, the AD5933YRSZ is suitable for space-constrained applications.

Applications

The AD5933YRSZ is versatile and can be used in a variety of applications, including:

• Biomedical and bioelectrical impedance analysis
• Complex impedance measurement
• Material property analysis
• Corrosion monitoring and protection systems
• Impedance spectroscopy
• Proximity sensing by impedance change

Product Summary

The AD5933YRSZ by Analog Devices Inc. is an innovative and powerful solution for impedance measurement and analysis. Its integrated features and simple interface make it an excellent choice for engineers and researchers who require accurate and reliable impedance data. Whether for industrial, medical, or research applications, the AD5933YRSZ provides a comprehensive solution in a single integrated package.
