Same model may have multiple batches, images only for reference.

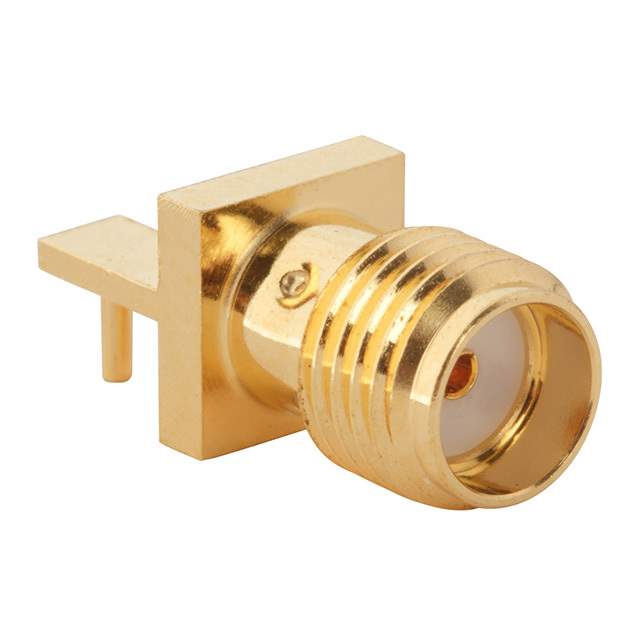

901-10510-1 Real Image
Same model may have multiple batches, images only for reference.

901-10510-1

Part No 901-10510-1
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA JACK R/A 50OHM EDGE MNT / SMA Connector Jack, Female Socket 50Ohm Board Edge, End Launch; Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Amphenol RF
Packaging Bulk
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Board Edge, End Launch; Through Hole, Right Angle
Fastening Type Threaded
Frequency - Max 26.5 GHz
Number of Ports 1
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 170 V
Mating Cycles 500
Base Product Number 901-10
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number ARF2495
Standard Package 50
Win Source Part Number 1331963-901-10510-1
Ultra Librarian 3D Model Ultra Librarian 901-10510-1 CAD Model

Description

The Amphenol RF coaxial connector (RF) assembly is a female socket jack with a threaded fastening type.

  • Packaging: Bulk
  • Voltage Rating: 170V
  • Connector Type: SMA
  • Contact Termination: Solder
  • Ingress Protection: No
  • Frequency Maximum: 26.5GHz
  • Housing Color: Not specified
  • Number of Ports: One
  • Standard Package: 50
  • Mounting Options: Board edge, end launch, through hole, and right-angle
  • Impedance: 50Ohm
  • Mounting Feature: Not specified
  • Insertion Loss: No
  • Shield Termination: Solder
  • Cable Group: Not specified
  • Body Material: Not specified
  • Body Finish: Not specified
  • Center Contact Material: Not specified
  • Center Contact Plating: Not specified
  • Dielectric Material: Not specified
  • Mating Cycles: 500
  • Operating Temperature Range: Between -65°C to 165°C
  • ECCN: EAR99
  • REACH Affected: Yes
  • HTSUS: 8536.69.4010
  • RoHS Status: RoHS3 compliant
