SF1521-60070 Amphenol
Same model may have multiple batches, images only for reference.

SF1521-60070

Part No SF1521-60070
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies

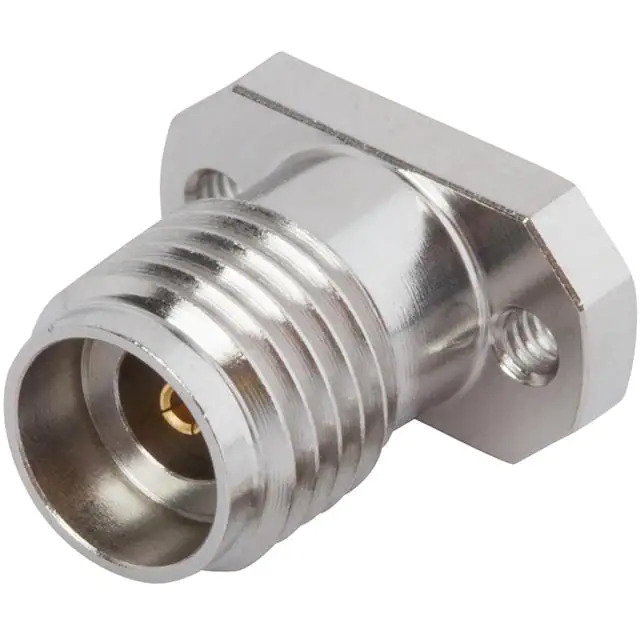

Description CONN 2.92MM JACK STR 50 OHM SMD / 2.92mm Connector Jack, Female Socket 50Ohm Surface Mount Compression
Datasheet
SF1521-60070 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol SV Microwave
Series 2.92mm
Package Bag
Product Status Active
Connector Style 2.92mm
Connector Type Jack, Female Socket
Contact Termination Compression
Shield Termination Screw
Impedance 50Ohm
Mounting Type Surface Mount
Mounting Feature Flange
Cable Group -
Fastening Type Threaded
Frequency - Max 40 GHz
Number of Ports 1
Features -
Housing Color Silver
Ingress Protection -
Center Contact Material Beryllium Copper
Includes -
Body Material Stainless Steel
Body Finish -
Center Contact Plating Gold
Dielectric Material Polyetherimide (PEI)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Insertion Loss -
Base Product Number SF1521
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 1365232-SF1521-60070
Ultra Librarian 3D Model Ultra Librarian SF1521-60070 CAD Model

Description

The Amphenol SV Microwave SF1521-60070 is a 2.92mm coaxial connector assembly.

  • Maximum Frequency: 40 GHz
  • Impedance: 50Ohm
  • Mounting: Surface mount
  • Termination Style: Compression
  • Fastening Type: Threaded
  • Material: Stainless steel
  • Housing Color: Silver
  • Mating Cycle: 500
  • RoHS Compliant: Yes
