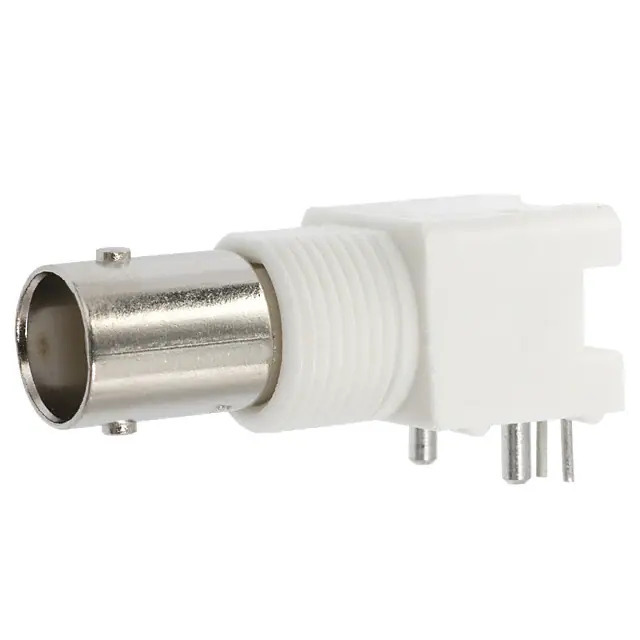

5227161-7 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Bulk
Product Status Active
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Cable Group -
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Features Board Guide, Isolated
Housing Color Silver, White
Ingress Protection -
Center Contact Material Phosphor Bronze
Includes -
Body Material Zinc
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polymethylpentene (PMP)
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss -
Base Product Number 5227161
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1365228-5227161-7
Ultra Librarian 3D Model Ultra Librarian 5227161-7 CAD Model

Description

The TE Connectivity AMP Connectors coaxial connector assembly is a reliable solution for RF applications.

  • Temperature Range: -55°C to 85°C
  • Mounting Type: Panel Mount, Through-Hole, Right Angle
  • Termination: Solder
  • Connector Type: Jack
  • Contact Gender: Female Socket
  • Fastening Type: Bayonet Lock
  • Voltage Rating: 500V
  • Frequency Range: Up to 4 GHz
  • Color: Silver and White
  • Status: Active
  • Packaging: Bulk
  • Impedance: 50Ohm
