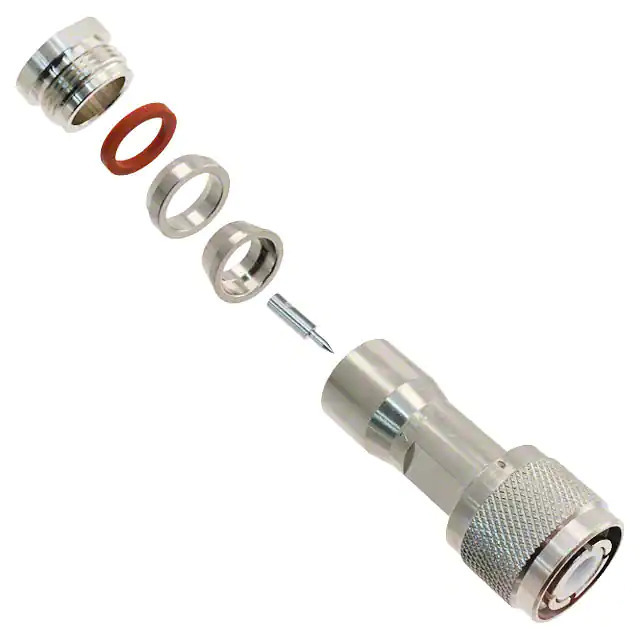

082-804 Amphenol-RF Division
Same model may have multiple batches, images only for reference.

082-804

Part No 082-804
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN HN PLUG STR 50 OHM SOLDER / HN Type Connector Plug, Male Pin 50Ohm Free Hanging (In-Line) Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol RF
Series -
Package Bulk
Product Status Active
Connector Style HN Type
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Clamp
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Cable Group RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
Fastening Type Threaded
Frequency - Max 4 GHz
Number of Ports 1
Features -
Housing Color Silver
Ingress Protection Weatherproof
Center Contact Material Brass
Includes 6 pcs - 1 Connector, 1 Braid Clamp, 1 Cable Gland, 1 Clamp, 1 Contact, 1 Gasket
Body Material Brass
Body Finish Nickel
Center Contact Plating Silver
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 1500 V
Mating Cycles 500
Insertion Loss -
Base Product Number 082-804
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1365248-082-804
Ultra Librarian 3D Model Ultra Librarian 082-804 CAD Model

Description

The 1365248-082-804 is a coaxial connector assembly manufactured by Amphenol RF.

  • Connector Type: Plug
  • Number of Ports: 1
  • Impedance: 50Ohm
  • Contact Termination: Solder
  • Fastening Type: Threaded
  • Mounting Type: Free Hanging (In-Line)
  • Voltage Rating: 1500V
  • Maximum Frequency: 4GHz
  • Connector Style: HN Type
  • Product Status: Active
  • Package: Bulk
  • REACH Compliant: Yes
  • ECCN: EAR99
