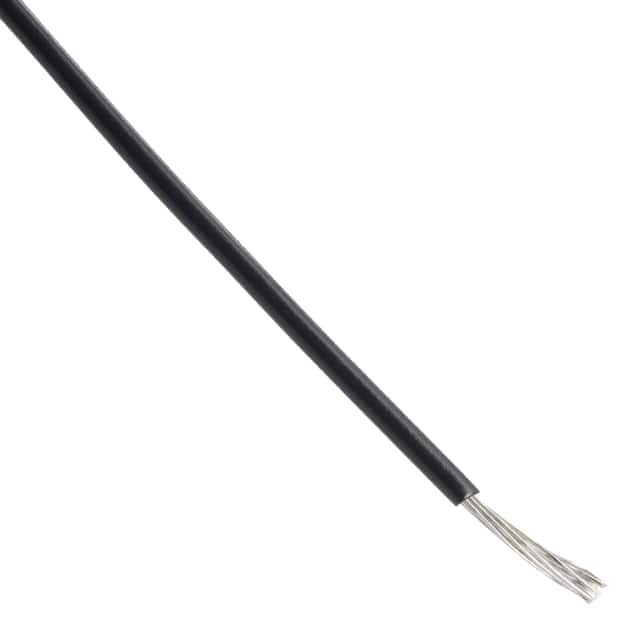

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires - Single Conductor Cables (Hook-Up Wire)
Mfr Alpha Wire
Series MIL-W-16878E Type B
Package Spool
Product Status Active
Cable Type Hook-Up
Wire Gauge 22 AWG
Conductor Strand 19/34
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyethylene (XLPE), Irradiated
Jacket (Insulation) Diameter 0.054" (1.37mm)
Jacket (Insulation) Thickness 0.011" (0.28mm)
Length 1000.0' (304.8m)
Voltage 150V
Temperature Range - Operating -55°C ~ 125°C
Jacket Color Black
Ratings UL Style 3265
Base Product Number 7012
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Win Source Part Number 853121-7012 BK001
Ultra Librarian 3D Model Ultra Librarian 7012 BK001 CAD Model

Description

The 853121-7012 BK001 is a 22 AWG hook-up wire from Alpha Wire.

  • AWG: 22
  • Conductor Type: Single Conductor
  • Length: 1000.0 feet (304.8m)
  • Voltage Rating: 150V
  • Conductor Material: Copper, Tinned
  • Conductor Strand: 19/34
  • Insulation Material: Polyethylene (XLPE), Irradiated
  • Insulation Diameter: 0.054 inches (1.37mm)
  • Jacket Color: Black
  • Jacket Thickness: 0.011 inches (0.28mm)
  • Operating Temperature: -55°C to 125°C
  • UL Style: 3265
