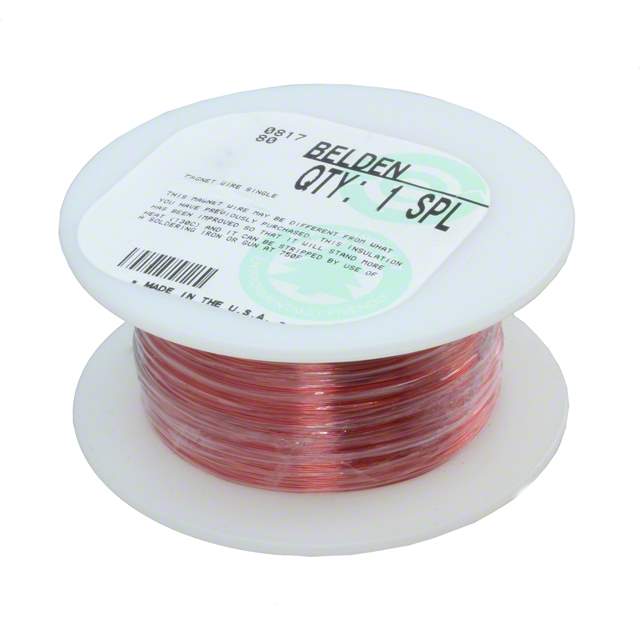

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Conductor Material Copper
Insulation Material Nylon
Length 1.95072 km
Max Current Rating 30 mA
Max Operating Temperature 130 °C
Number of Conductors 1
Outside Diameter 150 µm
RoHS Compliant
Voltage Rating 2.85 kV
Weight 240.403984 g
Wire/Cable Diameter 140 µm
Wire/Cable Gauge 36 AWG
Wire/Cable Type Hook-Up
Win Source Part Number 1222730-8058
Categories Single Conductor Cables(Hook - UpWire)
Manufacturer Belden Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 8058 CAD Model

Description

The 1222730-8058 is a single conductor cable with a voltage rating of 2.85 kV from Belden Inc.

  • Voltage Rating: 2.85 kV
  • Length: 1.95072 km
  • Conductor Material: Copper
  • Insulation: Nylon
  • Weight: 240.403984 g
  • Category: Hook-Up Wire
  • Supply and Demand Status: Limited
  • RoHS Compliant: Yes
  • Wire/Cable Gauge: 36 AWG
  • Maximum Current Rating: 30 mA
  • Outside Diameter: 150 µm
  • Maximum Operating Temperature: 130 °C
