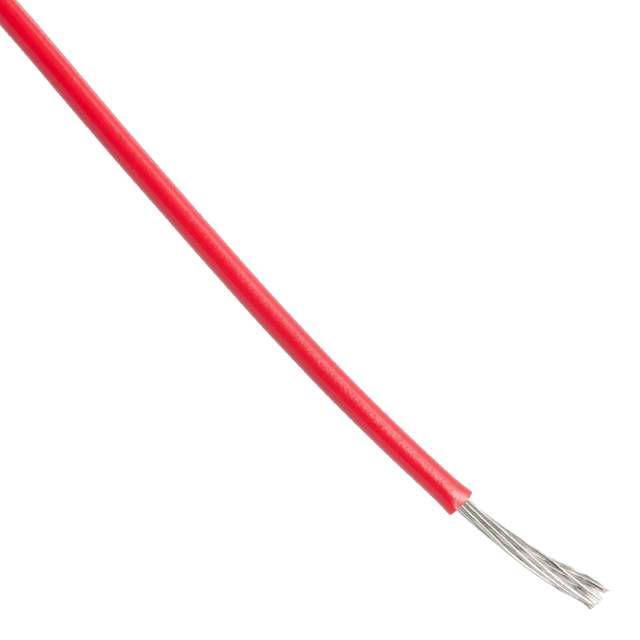

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires - Single Conductor Cables (Hook-Up Wire)
Mfr Alpha Wire
Series MIL-DTL-22759/16
Package Spool
Cable Type Hook-Up
Wire Gauge 20 AWG
Conductor Strand 19/32
Conductor Material Copper, Tinned
Jacket (Insulation) Material Ethylene Tetrafluoroethylene (ETFE)
Jacket (Insulation) Diameter 0.060" (1.52mm)
Jacket (Insulation) Thickness 0.011" (0.28mm)
Length 100.0' (30.5m)
Voltage 600V
Temperature Range - Operating -55°C ~ 150°C
Jacket Color Red
Base Product Number AZ201932
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Win Source Part Number 1351142-AZ201932 RD005
Ultra Librarian 3D Model Ultra Librarian AZ201932 RD005 CAD Model

Description

The AZ201932 RD005 from Alpha Wire is a 20 AWG hook-up wire that is part of the MIL-DTL-22759/16 series.

  • Wire Gauge: 20 AWG
  • Series: MIL-DTL-22759/16
  • Packaging: Spool
  • Length: 100.0' (30.5m)
  • Voltage Rating: 600V
  • Temperature Range: -55°C to 150°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8544.49.3080
  • Jacket Material: Ethylene Tetrafluoroethylene (ETFE)
  • Jacket Diameter: 0.060" (1.52mm)
  • Jacket Thickness: 0.011" (0.28mm)
  • Conductor Strand: 19/32
  • Conductor Material: Copper, tinned
  • Color: Red
