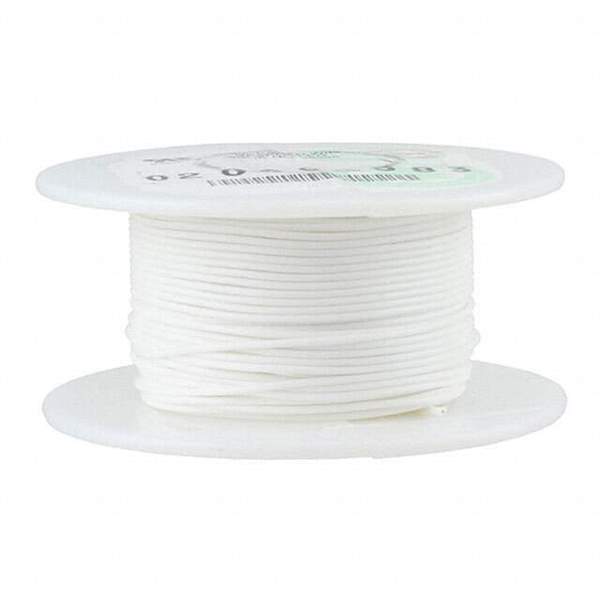

83006 009100 Real Image
Same model may have multiple batches, images only for reference.

83006 009100

Part No 83006 009100
Manufacturer Belden Inc.
Catalog Single Conductor Cables (Hook - UpWire)
Description HOOK-UP STRND 22 AWG WHT 100'
Datasheet
83006 009100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer Belden Inc.
Cable Type Hook-Up
Wire Gauge 22 AWG
Conductor Strand 19/34
Conductor Material Copper, Silver Coated
Jacket (Insulation) Material Tetrafluoroethylene (TFE)
Jacket (Insulation) Diameter 0.050" (1.27mm)
Jacket (Insulation) Thickness 0.010" (0.25mm)
Length 100.0' (30.5m)
Voltage 600V
Operating Temperature Range -70°C ~ 200°C
Jacket Color White
Ratings UL Style 1213
Features High Temperature
Win Source Part Number 777885-83006 009100
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 83006 009100 CAD Model

Description

The Belden Inc. cable is a hook-up cable designed for use in high-temperature environments.

  • Wire Gauge: 22 AWG
  • Length: 100.0 feet (30.5m)
  • Conductor Material: Copper, Silver-Coated
  • Strand: 19/34
  • Jacket Insulation Material: Tetrafluoroethylene (TFE)
  • Diameter: 0.050 inches (1.27mm)
  • Jacket Color: White
  • Jacket Thickness: 0.010 inches (0.25mm)
  • Voltage Rating: 600V
  • UL Style: 1213
  • Temperature Range: -70°C to 200°C
  • Applications: Cables and Wires
