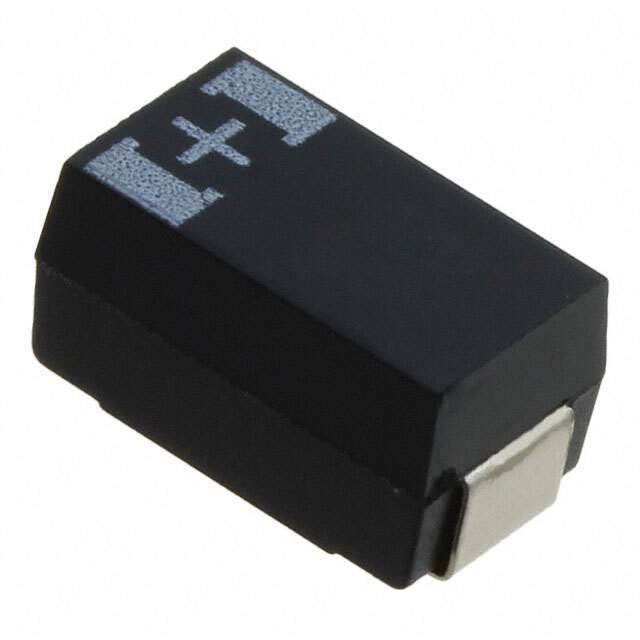

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Capacitance 330μF
Tolerance ±20%
Voltage - Rated 10V
Type Molded
ESR (Equivalent Series Resistance) 35mOhm at 100kHz
Temperature Range - Operating -55°C ~ 125°C
Lifetime at Temp. 1000 Hrs at 125°C
Mounting Style SMD
Manufacturer Package 2917 (7343 Metric)
Parts Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.154" (3.90mm)
Manufacturer Size Code D4
Features General Purpose
Manufacturer Pack Quantity 1
MSL Level 5 (48 Hours)
Win Source Part Number 1121088-10THB330M
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 10THB330M CAD Model

Description

Panasonic Electronic Components' 10THB330M is a molded SMD capacitor with a capacitance of 330μF and a voltage rating of 10V from Panasonic Electronic Components.

  • Capacitance: 330μF
  • Voltage Rating: 10V
  • ESR (Equivalent Series Resistance) @ 100kHz: 35mOhm
  • Tolerance: ±20%
  • Packaging: Reel
  • Operating Temperature: -55°C ~ 125°C
