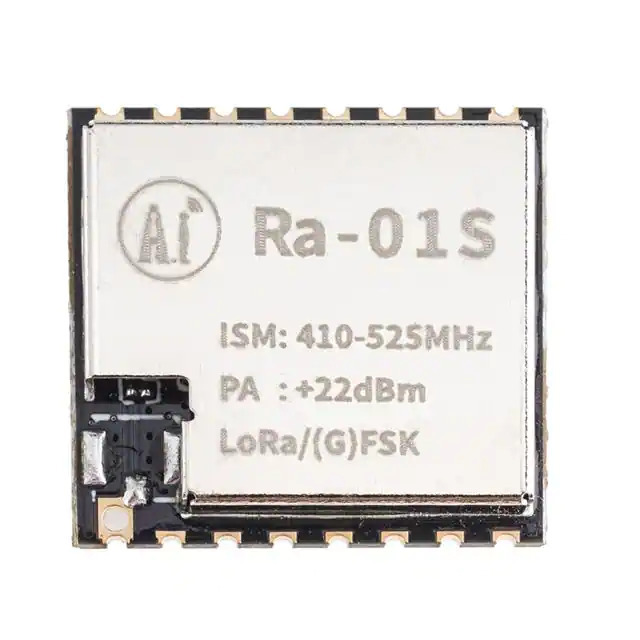

RA-01S Ai-Thinker
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Ai-Thinker
Series -
Package Tape & Reel
Product Status Active
RF Family/Standard General ISM < 1GHz
Protocol LoRa™
Modulation FSK, GFSK, GMSK, MSK, OOK
Frequency 410MHz ~ 525MHz
Data Rate 300kbps
Power - Output 22dBm
Sensitivity -140dBm
Serial Interfaces SPI
Antenna Type Antenna Not Included, I-PEX
Utilized IC / Part -
Memory Size -
Voltage - Supply 2.7V ~ 3.6V
Current - Receiving 4.5mA
Current - Transmitting -
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 16-SMD Module
MSL Level 1 (Unlimited)
ECCN 5A991G
HTSUS 8517.62.0090
Win Source Part Number 1370940-RA-01S
Ultra Librarian 3D Model Ultra Librarian RA-01S CAD Model

Description

The 1370940-RA-01S is a versatile RF Transceiver Module designed for General ISM communication applications.

  • Application: General ISM
  • Frequency: 410MHz to 525MHz
  • Package: 16-SMD
  • Voltage Supply: 2.7V to 3.6V
  • Output Power: 22dBm
  • Sensitivity: -140dBm
  • Interface: SPI
  • Modulation: FSK, GFSK, GMSK, MSK, OOK
  • Current Consumption (Receiving): 4.5mA
  • Status: Active
