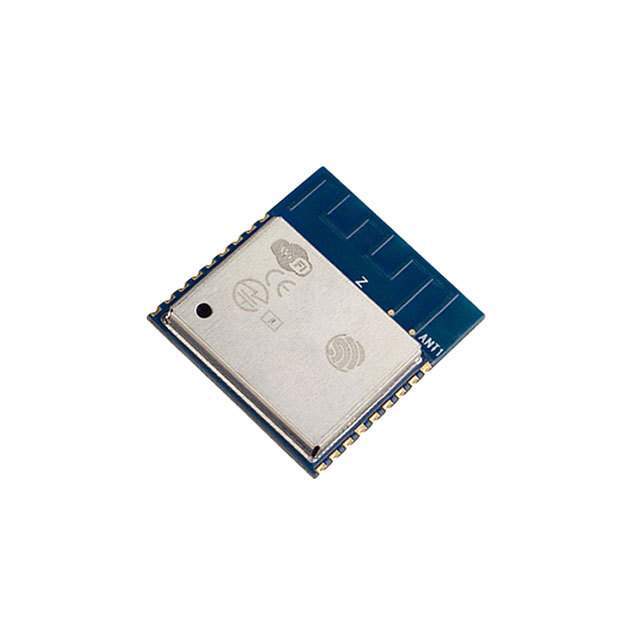

113990234 Seeed Technology Co., Ltd
Same model may have multiple batches, images only for reference.

113990234

Part No 113990234
Manufacturer Seeed Technology Co., Ltd
Catalog RF Transceiver Modules
Description TXRX ESP8266 MOD WIFI TRACE ANT / Module 802.11b/g/n 2.4835GHz
Datasheet
113990234 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Seeed Technology Co., Ltd
Series Wio
RF Family/Standard WiFi
Protocol 802.11b/g/n
Frequency 2.4GHz ~ 2.5GHz
Serial Interfaces I2C, I2S, SPI, UART
Antenna Type PCB Trace
Memory Size 4MB Flash
Operating Supply Voltage 3 V ~ 3.6 V
Current - Receiving 80mA
Current - Transmitting 80mA
Mounting SMD
Operating Temperature Range -40°C ~ 125°C
Package Module
Win Source Part Number 774259-113990234
Popularity Medium
Supply and Demand Status Limited
Family Name 113990234
Introduction Date January 01, 2000
ECCN 5A002.a
Country of Origin China
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian 113990234 CAD Model

Description

The Seeed Technology Co., Ltd Wio 113990234 is a WiFi module from Seeed Technology Co., Ltd.

  • Frequency Range: 2.4GHz to 2.5GHz
  • Protocol: 802.11b/g/n
  • Data Rate: Up to 150Mbps
  • Antenna: Built-in
  • Flash Memory: 4MB
  • Interfaces: I2C, I2S, SPI, UART
  • Package: Surface-mount Device
