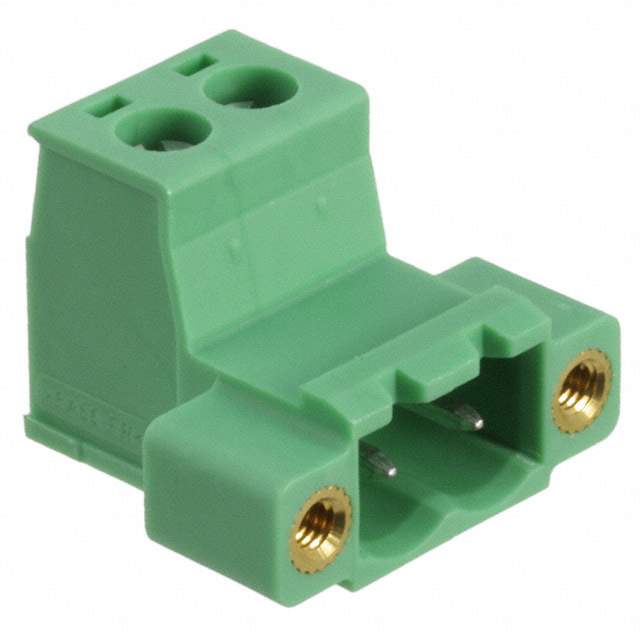

1825501 Real Image
Same model may have multiple batches, images only for reference.

1825501

Part No 1825501
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Conn Pluggable Terminal Block PL 2 POS 5.08mm Screw ST 12A Cardboard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Green
Connector Type Plug, Screw
Contact Material Tin
Contact Plating Tin
Current 12 A
Current Rating 12 A
Depth 15 mm
Flammability Rating UL94 V-0
Gender Female
Height 19.2 mm
Housing Color Green
Housing Material Polyamide
Lead Free Lead Free
Length 11.66 mm
Material Polyamide
Max Current Rating 12 A
Mount Free Hanging, Panel, Plug-In
Number of Circuits 2
Number of Contacts 2
Number of Levels 1
Number of Positions 2
Number of Positions Per Level 2
Number of Rows 1
Orientation Right Angle
Pitch 5.08 mm
RoHS Compliant
Termination Screw
Type Integrated Circuit (IC)
Voltage 300 V
Voltage Rating 250 V
Weight 137.000006 g
Width 19.2 mm
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Win Source Part Number 1130089-1825501
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1825501 CAD Model

Description

The Phoenix Contact 1130089-1825501 is a green integrated circuit (IC) with a plug, screw connector type.

  • Connector Type: Plug, Screw
  • Positions: Two
  • Levels: One
  • Pitch: 5.08mm
  • Voltage Rating: 250V
  • Current Rating: 12A
  • Contact Material: Tin
  • Termination: Screw
  • Length: 11.66mm
  • Height: 19.2mm
  • Housing Material: Polyamide
  • Housing Color: Green
  • Flammability Rating: UL94 V-0
  • Lead-Free: Yes
  • Wire Gauge (Min): 12 AWG
  • Wire Gauge (Max): 30 AWG
  • Maximum Current Rating: 12A
  • Mounting: Free Hanging, Panel, Plug-In
