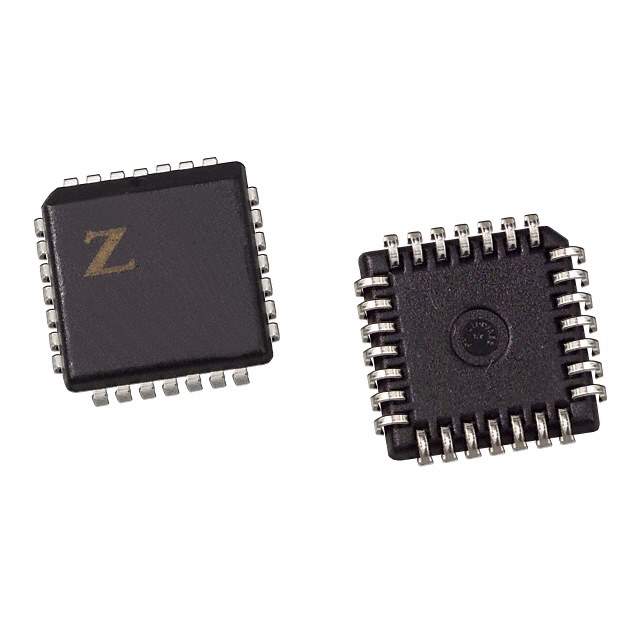

Z86E8316VEG Real Image
Same model may have multiple batches, images only for reference.

Z86E8316VEG

Part No Z86E8316VEG
Manufacturer Zilog
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 4KB OTP 28PLCC / MCU 8-bit Z8 CISC 4KB EPROM 5V 44-Pin PLCC
Datasheet
Z86E8316VEG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Zilog
Series Z8
Packaging Tube
Core Processor Z8
Core Size 8-Bit
Speed 16MHz
Peripherals POR, WDT
Number of I/O 21
Program Memory Size 4KB (4K x 8)
Program Memory Type One Time Programmable(OTP)
RAM Size 237 x 8
Supply Voltage 3.5 V ~ 5.5 V
Data Converters A/D 8x8b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 105°C (TA)
Package 28-LCC (J-Lead)
Win Source Part Number 800280-Z86E8316VEG
Popularity Medium
Supply and Demand Status Limited
Quantity per package 39
Family Name Z86E83
Introduction Date November 21, 1997
Country of Origin Taiwan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian Z86E8316VEG CAD Model

Description

The Zilog Z86E8316VEG is an 8-bit microprocessor that operates @ a speed of 16MHz.

  • Series: Z8
  • Cores: 1
  • Voltage Range: 3.5V to 5.5V
  • Package: 28-LCC (J-Lead)
  • I/O: 21
  • Supply and Demand Status: Limited
