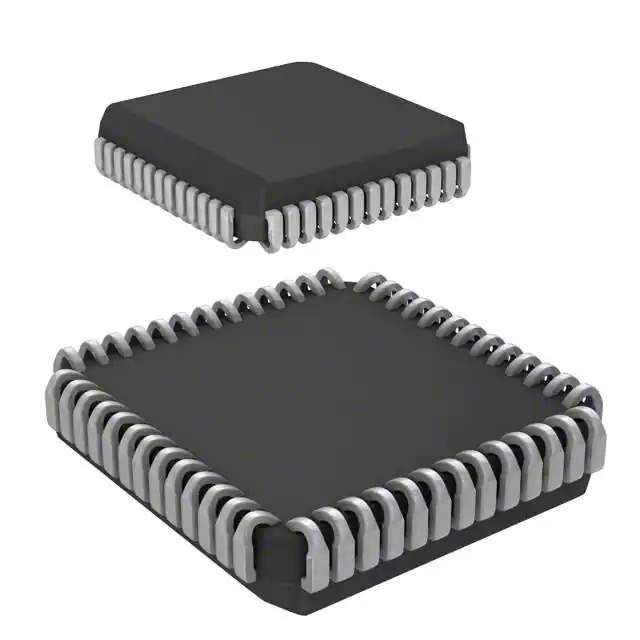

Microchip Technology's AT89C5130A-S3SUM

The AT89C5130A-S3SUM is a state-of-the-art USB Flash microcontroller produced by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This advanced microcontroller is part of Microchip's AT89C51 series, which is renowned for its high performance, versatility, and reliability in a wide range of applications.

At the heart of the AT89C5130A-S3SUM is an 8-bit CPU with a fully static operation, running up to 48 MHz frequency with a 24 MHz crystal. The microcontroller boasts 32K bytes of Flash memory for program storage, and 2304 bytes of RAM, ensuring ample space and speed for complex applications. Its USB functionality is compliant with USB 2.0 Full Speed (12 Mbps) and supports 8 endpoints with a 1024-byte configurable endpoint buffer, making it an ideal choice for USB-enabled devices.

The device also features a variety of peripherals that enhance its functionality. It includes a Full Speed USB module, two UARTs, an SPI interface, and a Two-Wire Interface (TWI) for simplified serial communication. Additionally, the AT89C5130A-S3SUM offers a robust set of I/O ports, a 16-bit timer/counter, a 10-bit PWM/PCA, and a 10-bit high-speed ADC with eight channels, allowing for precise analog signal processing.

Security is a key aspect of the AT89C5130A-S3SUM, which incorporates a 16-bit watchdog timer and a power-on reset function. It also features 2048 bytes of on-chip XRAM, enhancing the execution of tasks requiring additional memory. The microcontroller is designed to operate within a voltage range of 2.7V to 5.5V, making it suitable for low-power and battery-operated devices.

Microchip Technology provides comprehensive support for the AT89C5130A-S3SUM, including development tools and software libraries to streamline the design process. Whether you are developing USB peripherals, custom interfaces, or other innovative applications, the AT89C5130A-S3SUM offers the performance, flexibility, and reliability needed to bring your projects to life.
