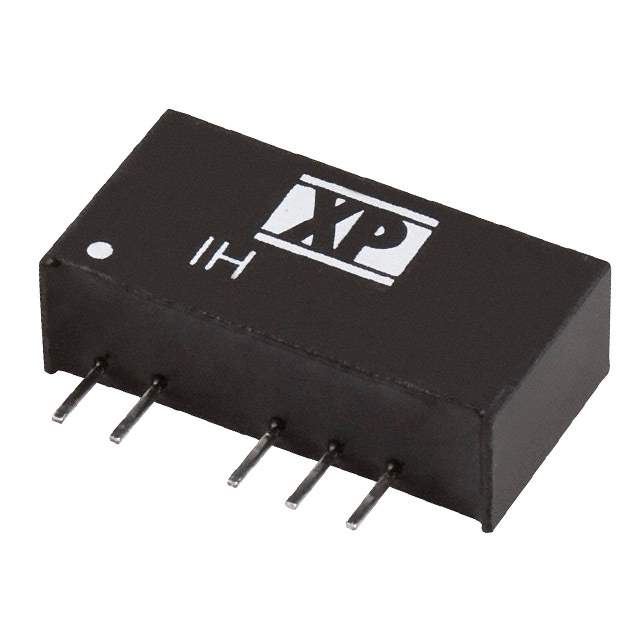

IH2412S Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr XP Power
Series IH (2W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 84mA, 84mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Type Through Hole
Package / Case 5-SIP Module
Dimension 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm)
Base Product Number IH2412
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1470-1460-5
Standard Package 20
Win Source Part Number 1156584-IH2412S
Ultra Librarian 3D Model Ultra Librarian IH2412S CAD Model

Description

The IH2412S is a DC DC converter with an isolated module type.

  • Power: 2 watts
  • Application: ITE (Commercial)
  • Outputs: two
  • Maximum Output Current: 84mA each
  • Voltage Input: 21.6V to 26.4V
  • Voltage Output: 12V (first output), -12V (second output)
  • Efficiency: 82 percent
  • Mounting Type: through-hole
  • Win Source Part Number: 1156584-IH2412S
