Same model may have multiple batches, images only for reference.

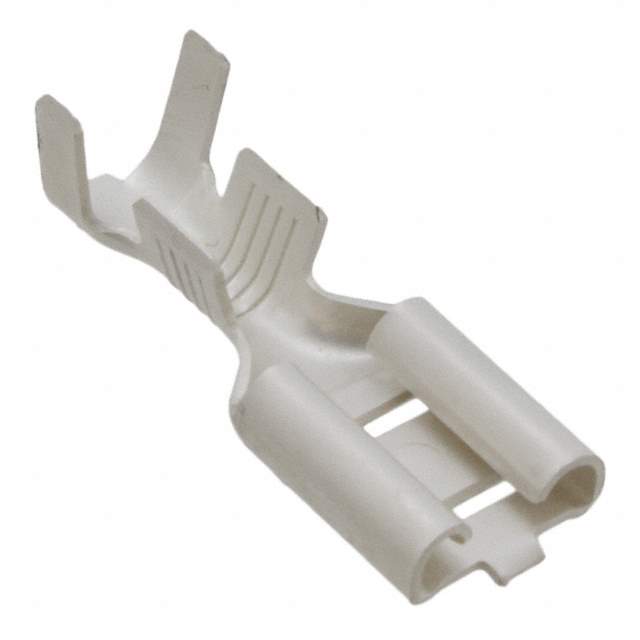

63820-1 Real Image
Same model may have multiple batches, images only for reference.

63820-1

Part No 63820-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 10-14AWG 0.312 / 0.312" (7.92mm) Quick Connect Female 10-14 AWG Crimp Connector Non-Insulated
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.312" (7.92mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.380" (9.65mm)
Length - Overall 0.900" (22.86mm)
Termination Crimp
Wire Gauge 10-14 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Silver
Insulation Diameter 0.150" ~ 0.200" (3.81mm ~ 5.08mm)
Base Product Number 63820
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 63820-1-ND,-63820-1-SI,A111556TR,A111556CT
Standard Package 36,000
Win Source Part Number 1333725-63820-1
Ultra Librarian 3D Model Ultra Librarian 63820-1 CAD Model

Description

The TE Connectivity AMP Connectors 1333725-63820-1 is a female quick connect terminal.

  • Packaging: Reel - TR
  • Insulation: Not insulated
  • Contact Finish: Silver
  • Wire Gauge: 10-14 AWG
  • Contact Material: Brass
  • Terminal Type: Standard
  • Overall Length: 0.900" (22.86mm)
  • Tab Width: 0.312" (7.92mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.380" (9.65mm)
  • Insulation Diameter: 0.150" ~ 0.200" (3.81mm ~ 5.08mm)
  • Base Product Number: 63820
  • RoHS Compliant: No
