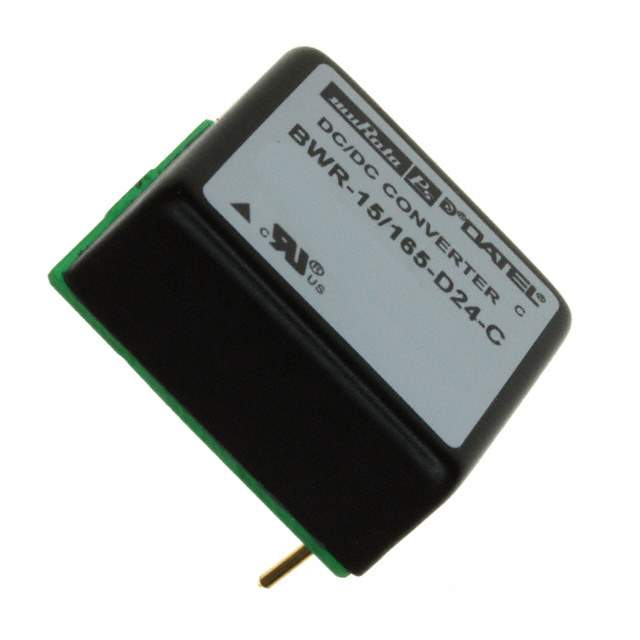

BWR-15/165-D24-C Real Image
Same model may have multiple batches, images only for reference.

BWR-15/165-D24-C

Part No BWR-15/165-D24-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC +/-15V +/-165MA DIP / Module DC-DC 24VIN 2-OUT 15V/-15V 0.165A/-0.165A 5W 5-Pin Case C-7
Datasheet
BWR-15/165-D24-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series BWR
Packaging Tube
Part Status Obsolete(EOL)
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 18V
Voltage Input MAX 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 165mA, 165mA
Power (Watts) 5W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Operating Temperature Range -25°C ~ 95°C
Efficiency 83%
Mounting Style Through Hole
Package 6-DIP Module
Dimension 1.00" L x 1.00" W x 0.45" H (25.4mm x 25.4mm x 11.4mm)
Win Source Part Number 770697-BWR-15/165-D24-C
Popularity Medium
Supply and Demand Status Limited
Family Name BWR-15/165-D24
Introduction Date May 14, 2007
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian BWR-15/165-D24-C CAD Model

Description

The Murata Power Solutions Inc. BWR-15/165-D24-C is an Isolated Module that comes in a 6-DIP Module package.

  • Power: 5W
  • Voltage-Isolation: 1kV (1000V)
  • Applications: ITE (Commercial)
  • Operating Temperature Range: -25°C to 95°C
  • Efficiency: 83%
  • Series: BWR
  • Mounting: Through hole
  • Package: Tube
  • Input Voltage Range: 18V to 36V
  • Voltage Output: 15V and -15V
  • Package Dimension: 1.00" L x 1.00" W x 0.45" H (25.4mm x 25.4mm x 11.4mm)
  • Obsolete (EOL): Yes
  • Alternative Parts (cross-reference): DMV5-2425, DH06D2415A, KRW24D15-190, and DP06D2415A
