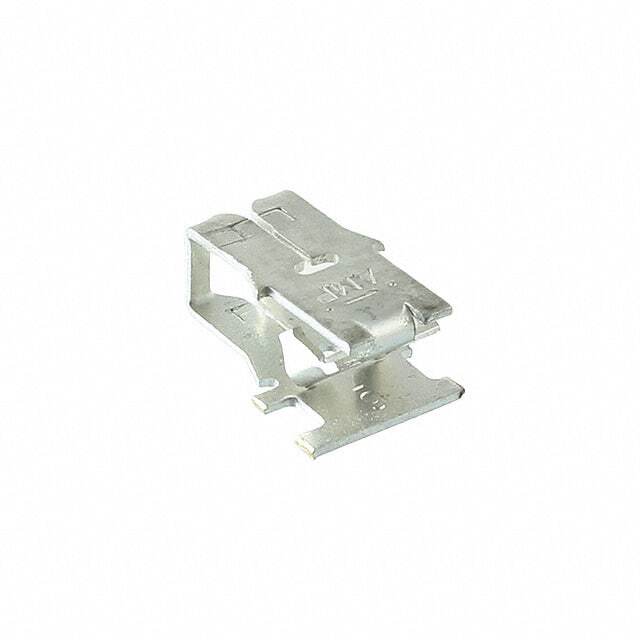

Same model may have multiple batches, images only for reference.
62429-1
Same model may have multiple batches, images only for reference.

62429-1

Part No 62429-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN MAG TERM 27-30AWG IDC / Terminal Magnetic Connector 300 27-30 AWG IDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Magnetic Wire Connectors
Mfr TE Connectivity
Series Mag-Mate
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Style 300
Terminal Type Poke-In Terminal
Size 2
Termination IDC
Wire Gauge 27-30 AWG
Features Locking
Base Product Number 62429
Standard Package 96,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 907664-62429-1
Ultra Librarian 3D Model Ultra Librarian 62429-1 CAD Model

Description

The Mag-Mate Magnetic Wire Connectors from TE Connectivity are high-quality terminals that offer secure and reliable connections.

  • Locking: Yes
  • Termination: IDC
  • Wire Gauge: 27-30 AWG
  • Package Quantity: 96,000 pcs
  • Product Status: Active
