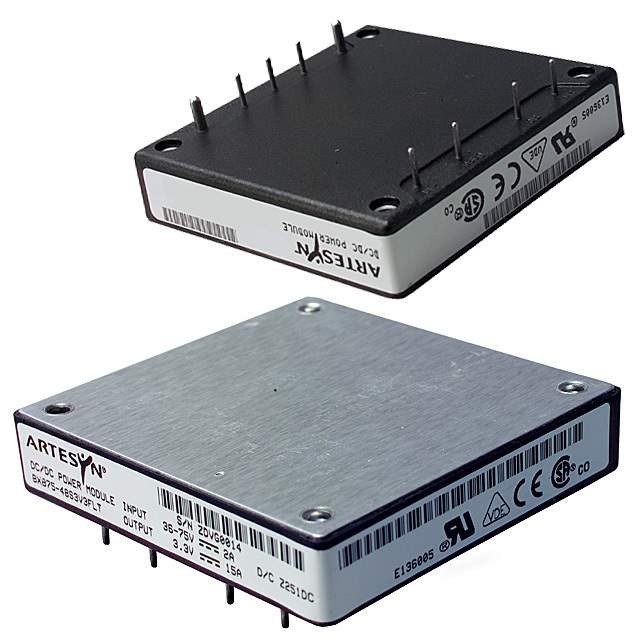

Same model may have multiple batches, images only for reference.

BXB75-48S3V3FHT

Name: BXB75-48S3V3FHT
Brand: Artesyn Embedded Technologies
SKU: 770700
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	BXB75-48S3V3FHT
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONV DC/DC 3.3V OUT 75W ACTIVEHI / Module DC-DC 48VIN 1-OUT 3.3V 15A 50W 9-Pin
Datasheet	BXB75-48S3V3FHT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Artesyn Embedded Technologies
Series	BXB75
Packaging	Bulk
Part Status	Obsolete(EOL)
Type	Isolated Module
Number of Outputs	1
Input Voltage MIN	36V
Voltage Input MAX	75V
Voltage - Output 1	3.3V
Current - Output (Maximum)	15A
Power (Watts)	50W
Voltage - Isolation	1.5kV (1500V)
Applications	ITE (Commercial)
Features	Remote On/Off, OTP, OVP, SCP, UVLO
Operating Temperature Range	-40°C ~ 100°C
Efficiency	79%
Mounting Style	Through Hole
Package	9-DIP Module
Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Win Source Part Number	770700-BXB75-48S3V3FHT
Popularity	Medium
Supply and Demand Status	Limited
Family Name	BXB75
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian BXB75-48S3V3FHT CAD Model

Alternative Products

Description

The Artesyn Embedded Technologies BXB75 is an isolated module type power supply that comes in a 9-DIP module package.

Applications: ITE (Commercial)
Power Rating: 50W
Voltage Isolation: 1.5kV (1500V)
Features: Remote On/Off, OTP, OVP, SCP, UVLO
Input Voltage Range: 36V to 75V
Output Voltage: 3.3V
Efficiency: 79%
Dimensions: 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Maximum Output Current: 15A
