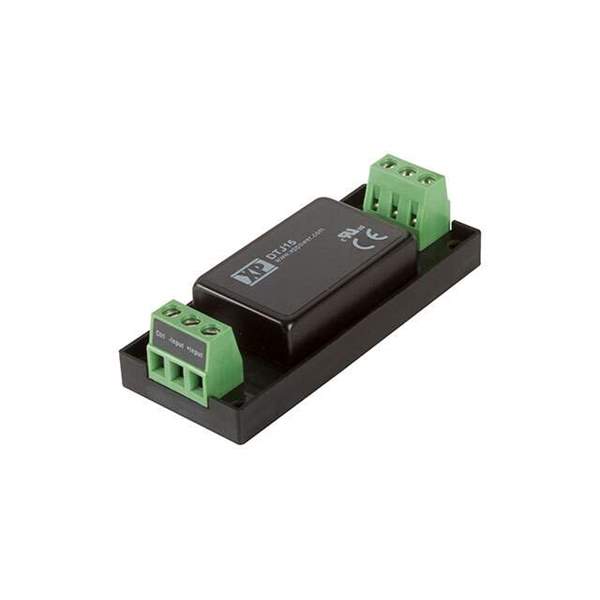

DTJ1524S12 Real Image
Same model may have multiple batches, images only for reference.

DTJ1524S12

Part No DTJ1524S12
Manufacturer XP Power
Catalog External/Internal (Off - Board) DC DC Converters
Description DC/DC CONVERTER 12V 15W / Enclosed DC DC Converter 1 Output 12V 1.25A 36V Input
Datasheet
DTJ1524S12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - DC DC Converters
Mfr XP Power
Series DTJ15 (15W)
Package Box
Type Enclosed
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Number of Outputs 1
Voltage - Output 1 12V
Current - Output (Max) 1.25A
Power (Watts) 15W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Efficiency 87%
Temperature Range - Operating -40°C ~ 100°C (With Derating)
Mounting Type Chassis Mount
Size / Dimension 3.00" L x 1.24" W x 0.77" H (76.2mm x 31.4mm x 19.4mm)
Approval Agency CB, UL
Standard Number 62368-1
Base Product Number DTJ1524
Standard Package 6
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1342268-DTJ1524S12
Ultra Librarian 3D Model Ultra Librarian DTJ1524S12 CAD Model

Description

The DTJ15 (15W) series of DC DC converters from XP Power is a high-quality enclosed type power supply that is designed for ITE (Commercial) applications.

  • Voltage Isolation: 3 kV
  • Outputs: Single
  • Output Current (Max): 1.25A
  • Input Voltage Range: 9V to 36V
  • Output Voltage: 12V
  • Efficiency: 87%
  • Mounting: Chassis Mount
  • Temperature Range: -40°C to 100°C (With Derating)
  • Approval Agency: CB and UL
  • Standard Number: 62368-1
