Same model may have multiple batches, images only for reference.

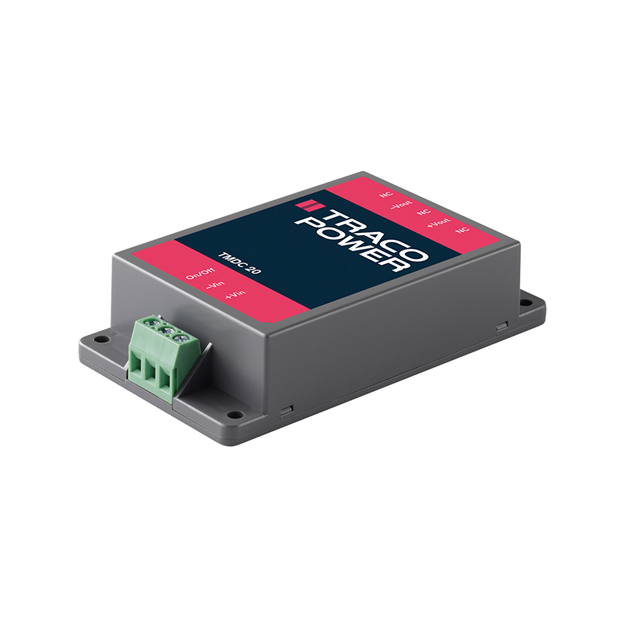

TMDC 20-4812 Real Image
Same model may have multiple batches, images only for reference.

TMDC 20-4812

Part No TMDC 20-4812
Manufacturer Traco Power
Catalog External/Internal (Off - Board) DC DC Converters
Description DC/DC CONVERTER 12V 20W / Enclosed DC DC Converter 1 Output 12V 1.67A 75V Input
Datasheet
TMDC 20-4812 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>DC DC Converters
Manufacturer Traco Power
Packaging Box
Type Enclosed
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Number of Outputs 1
Voltage - Output 1 12V
Current - Output (Max) 1.67A
Power (Watts) 20W
Voltage - Isolation 2.5 kV
Applications ITE (Commercial)
Efficiency 91%
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Mounting Chassis Mount
Size / Dimension 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.1mm x 23.4mm)
Approval Agency CB, CE, cURus
Base Product Number TMDC 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMDC 20-4812-ND,TMDC20-4812
Standard Package 10
Win Source Part Number 1336061-TMDC 20-4812
Ultra Librarian 3D Model Ultra Librarian TMDC 20-4812 CAD Model

Description

The TMDC 20-4812 is a DC-DC converter manufactured by Traco Power.

  • Type: Enclosed type
  • Packaging: Box
  • Power Output: 20W
  • Efficiency: 91%
  • Application: ITE (commercial) equipment
  • Market Popularity: Low
  • Supply and Demand Status: Limited
  • Voltage Isolation: 2.5kV
  • Operating Temperature: -40°C to 90°C with derating
