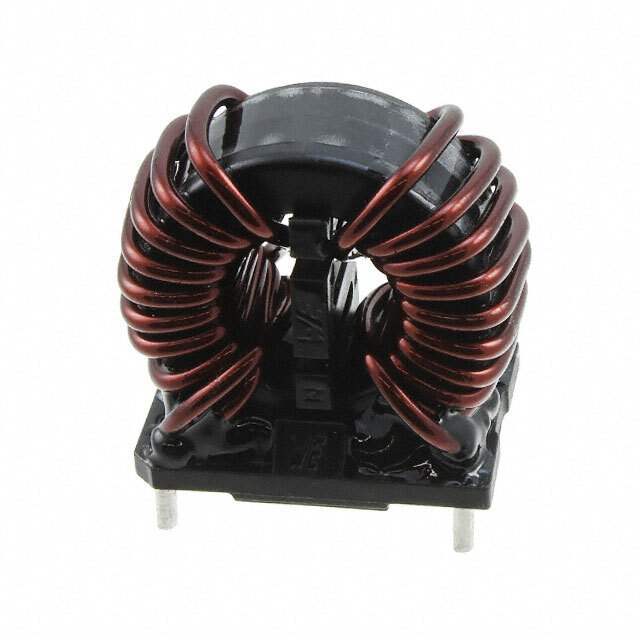

7448052502 Würth Elektronik
Same model may have multiple batches, images only for reference.

7448052502

Part No 7448052502
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 2.5MH 25A 2LN TH
Datasheet
7448052502 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206845-7448052502
Manufacturer Würth Elektronik
Category Filters-Common Mode Chokes
Series WE-CMBNC
Package Bulk
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.5 mH @ 10 kHz
Current Rating (Max) 25A
DC Resistance (DCR) (Max) 2.2mOhm
Ultra Librarian 3D Model Ultra Librarian 7448052502 CAD Model

Description

2.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 25A DCR 2.2mOhm
