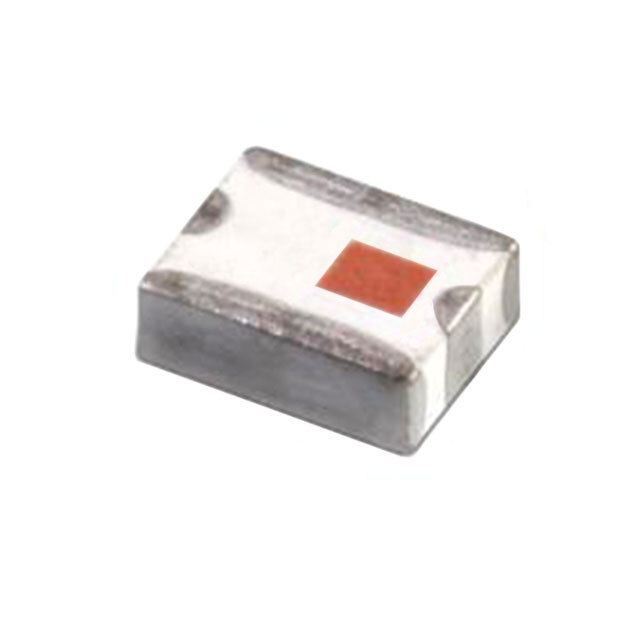

744290130 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

744290130

Part No 744290130
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 13UH 10A 2LN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 13 µH @ 10 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 2.7mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.571" L x 0.492" W (14.50mm x 12.50mm)
Height (Max) 0.307" (7.80mm)
Case / Package Horizontal, 4 Flat Lead
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1507317-744290130
Ultra Librarian 3D Model Ultra Librarian 744290130 CAD Model

Description

N
