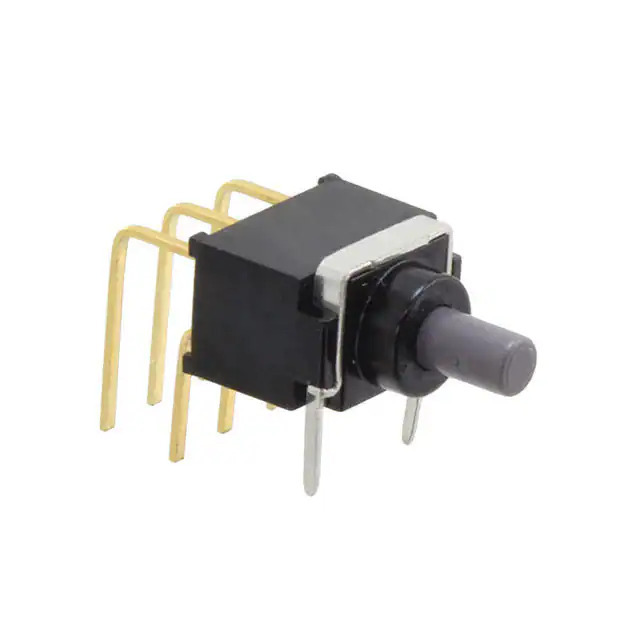

CFP2-2RC4-AW Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CFP2-2RC4-AW

Part No CFP2-2RC4-AW
Manufacturer Nidec Copal Electronics
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON DPDT 0.4VA 28V
Datasheet
CFP2-2RC4-AW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr Nidec Components Corporation
Series CFP2
Package Tray
Product Status Active
Mounting Type Through Hole, Right Angle
Type Standard
Circuit DPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap -
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features Washable
Panel Cutout Dimensions -
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number CFP2-2RC
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376076-CFP2-2RC4-AW
Ultra Librarian 3D Model Ultra Librarian CFP2-2RC4-AW CAD Model

Description

The CFP2-2RC4-AW is a pushbutton switch from Nidec Components Corporation.

  • Circuit: DPDT
  • Current Rating: 0.4VA AC/DC
  • Voltage Rating (AC): 28V AC
  • Voltage Rating (DC): 28V DC
  • Actuator Type: Plunger for Cap
  • Termination Style: PC Pin
  • Mounting Type: Through-Hole, Right Angle
  • Mechanical Life: 30,000 cycles
  • Electrical Life: 10,000 cycles
  • Series: CFP2
  • Packaging: Tray
  • Washable: Yes
