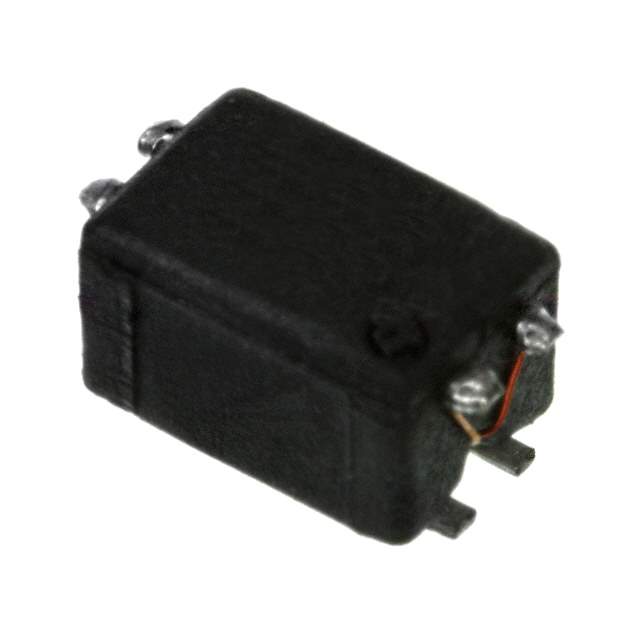

744242330 Real Image
Same model may have multiple batches, images only for reference.

744242330

Part No 744242330
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 33UH 300MA 2LN 2K OHM SMD
Datasheet
744242330 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SLM
Package Tape & Reel
Product Status Active
Filter Type Power, Signal Line
Number of Lines 2
Impedance @ Frequency 2 kOhms @ 50 MHz
Inductance @ Frequency 33 µH @ 100 kHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 270mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.236" L x 0.130" W (6.00mm x 3.30mm)
Height (Max) 0.138" (3.50mm)
Package / Case Horizontal, 4 Flat Lead
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857309-744242330
Ultra Librarian 3D Model Ultra Librarian 744242330 CAD Model

Description

The WE-SLM series is a common mode choke designed for power and signal line filtering applications.

  • Current Rating: 300mA
  • Voltage Rating: 80V DC
  • Size: 0.236" L x 0.130" W (6.00mm x 3.30mm)
  • Height: 0.138" (3.50mm)
  • Impedance: 2 kOhms @ 50 MHz
  • Inductance: 33 µH @ 100 kHz
  • Mounting Type: Surface mount
  • Package: Horizontal, 4 flat lead
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: Wurth Electronics Inc
  • Standard Package: 500 pcs
