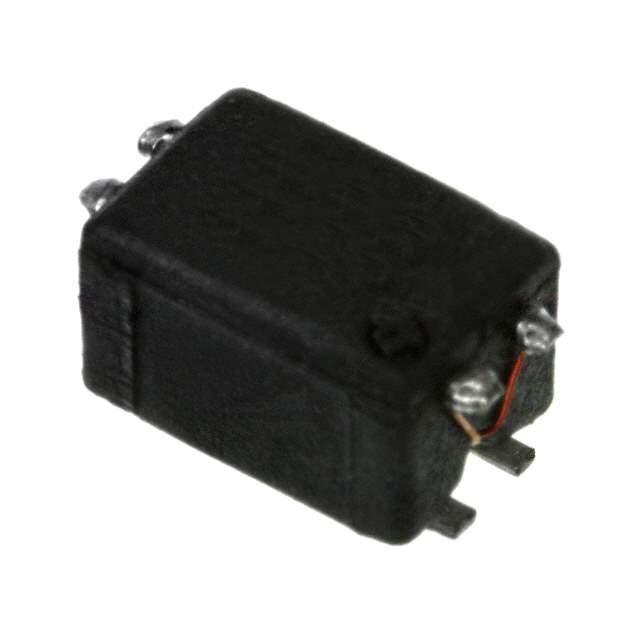

744242101 Real Image
Same model may have multiple batches, images only for reference.

744242101

Part No 744242101
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 100UH 300MA 2LN 4 KOHM SMD / COMMON MODE SMD LINE FILTER WE-SLM
Datasheet
744242101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 4 kOhms at 9MHz
Inductance at Frequency 100μH at 100kHz
Current Rating (Maximum) 300mA
DC Resistance (DCR) (Maximum) 580mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Dimension 0.236" L x 0.130" W (6.00mm x 3.30mm)
Height (Maximum) 0.138" (3.50mm)
Manufacturer Package Horizontal, 4 Flat Lead
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811840-744242101
Ultra Librarian 3D Model Ultra Librarian 744242101 CAD Model

Description

The Würth Elektronik 744242101 is a high-quality signal line filter that is commonly used in electronic devices.

  • Mounting Style: SMD
  • Maximum DC Voltage: 80V
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 300mA
  • DC Resistance (DCR): 580mOhm
  • Impedance: 4 kOhms @ 9MHz
  • Inductance: 100μH @ 100kHz
  • Manufacturer Pack Quantity: 500
