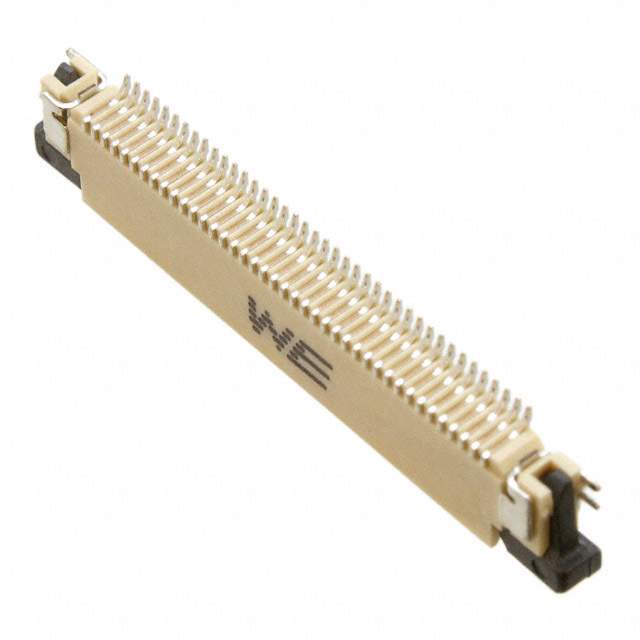

68714014022 Real Image
Same model may have multiple batches, images only for reference.

68714014022

Part No 68714014022
Manufacturer Wurth Electronics Inc
Catalog Flat Flex Cables (FFC, FPC)
Datasheet
68714014022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Würth Elektronik
Series WR-FPC
Package Tape & Reel
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 40
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 100.0µin (2.54µm)
Housing Color Ivory
Actuator Color Black
Mating Cycles 25
Other Names 732-3519-1,732-3519-2,732-3519-6
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1294076-68714014022
Ultra Librarian 3D Model Ultra Librarian 68714014022 CAD Model

Description

The WR-FPC series of flat flexible connectors from Würth Elektronik offers a wide range of features that make it an ideal choice for FFC, FPC connections.

  • Connector Type: Contacts, Top
  • Positions Loaded: 40
  • Pitch: 0.020 inches (0.50mm)
  • Flat Flex Type: FPC
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Material: Phosphor Bronze
  • Temperature Range: -25°C to 85°C
  • Flammability Rating: UL94 V-0
  • Mounting Type: Surface Mount, Right Angle
  • Packaging: Tape & Reel
  • Contact Finish: Tin
  • Contact Finish Thickness: 100.0µin (2.54µm)
  • Height Above Board: 0.079 inches (2.00mm)
  • FFC, FCB Thickness: 0.30mm
