Same model may have multiple batches, images only for reference.

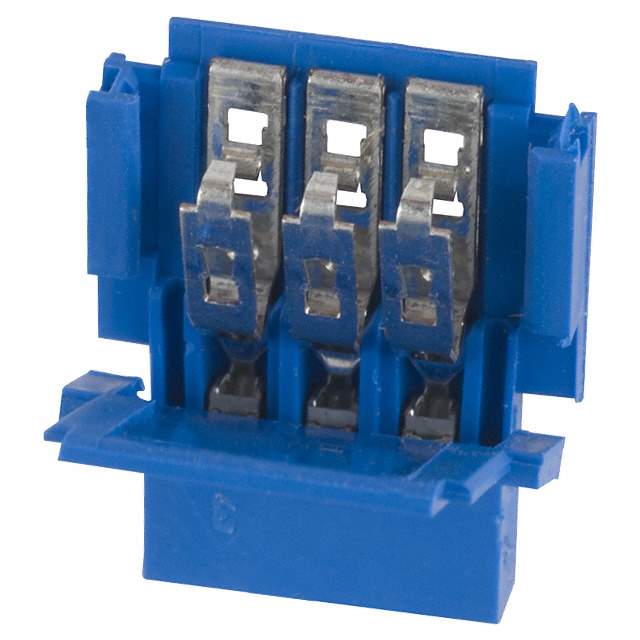

65801-003LF Real Image
Same model may have multiple batches, images only for reference.

65801-003LF

Part No 65801-003LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC RCPT 3POS 2.54MM / 3 Position FFC, FPC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series Clincher™
Package Tray
Flat Flex Type FFC, FPC
Mounting Type Free Hanging (In-Line)
Connector/Contact Type Receptacle
Number of Positions 3
Pitch 0.100" (2.54mm)
Termination Solder
FFC, FCB Thickness 0.30mm, 0.33mm
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Copper Nickel Alloy
Contact Finish Tin
Housing Material Thermoplastic
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 500V
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Contact Finish Thickness 100.0µin (2.54µm)
Housing Color Blue
Actuator Color Black
Mating Cycles 100
Base Product Number 65801
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 609-2159,2266-65801-003LF,65801003LF
Standard Package 102
Win Source Part Number 1208802-65801-003LF
Ultra Librarian 3D Model Ultra Librarian 65801-003LF CAD Model

Description

The 1208802-65801-003LF is a connector from Amphenol ICC (FCI).

  • Manufacturer: Amphenol ICC (FCI)
  • Type: FFC/FPC Connector
  • Positions: 3
  • Pitch: 2.54mm
  • Current Rating: 2A
  • Voltage Rating: 500V
  • Operating Temperature Range: -65°C to +105°C
  • Package: Tray
  • Quantity per Tray: 102 pieces
